DOTCOM DC-228 Dual 7-Digit LCD Counter – 5-13V DC, 150 CPS, A/B Inputs, Auto Memory (Set of 4)

DOTCOM DC-228 Dual 7-Digit LCD Counter – 5-13V DC, 150 CPS, A/B Inputs, Auto Memory (Set of 4)

Condition: New

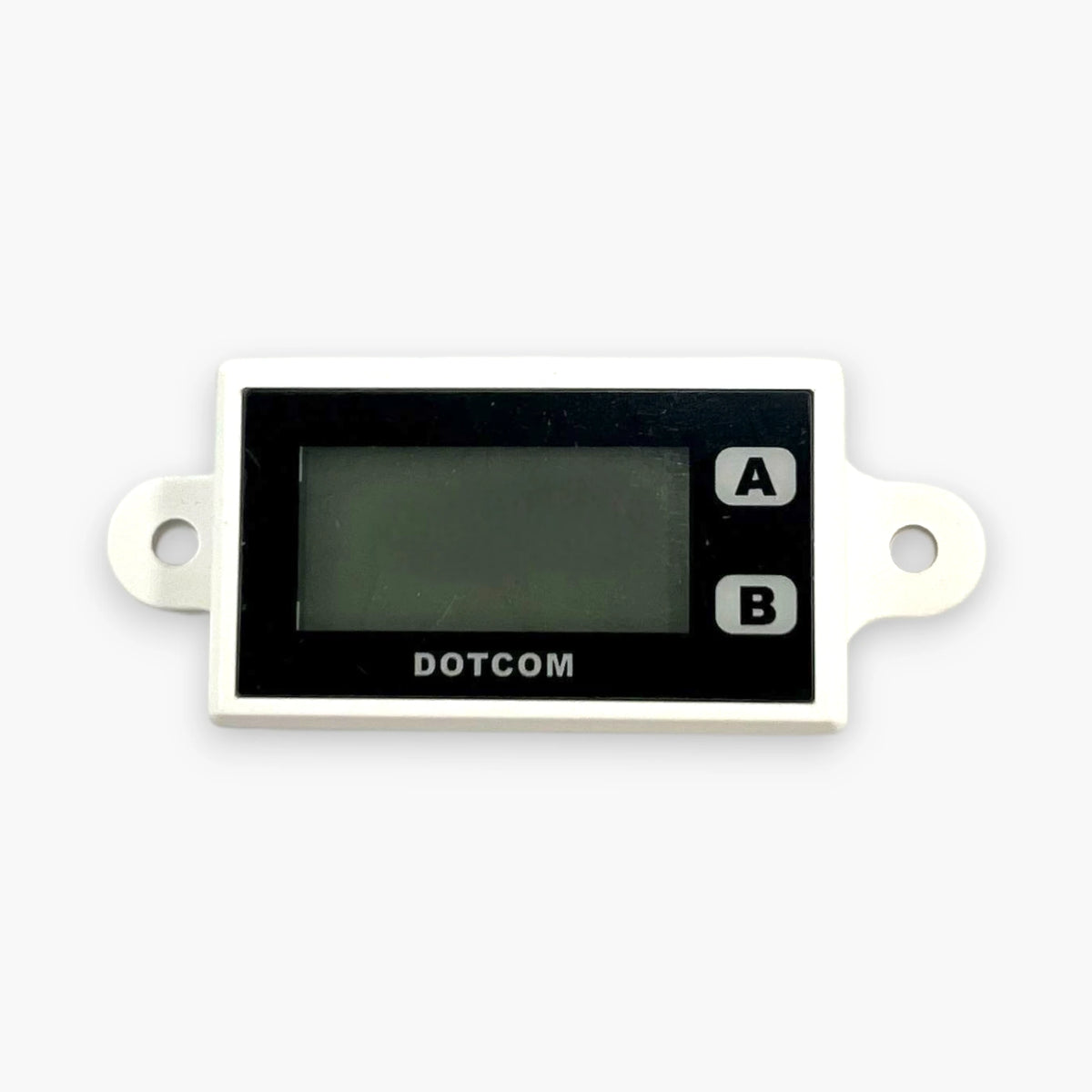

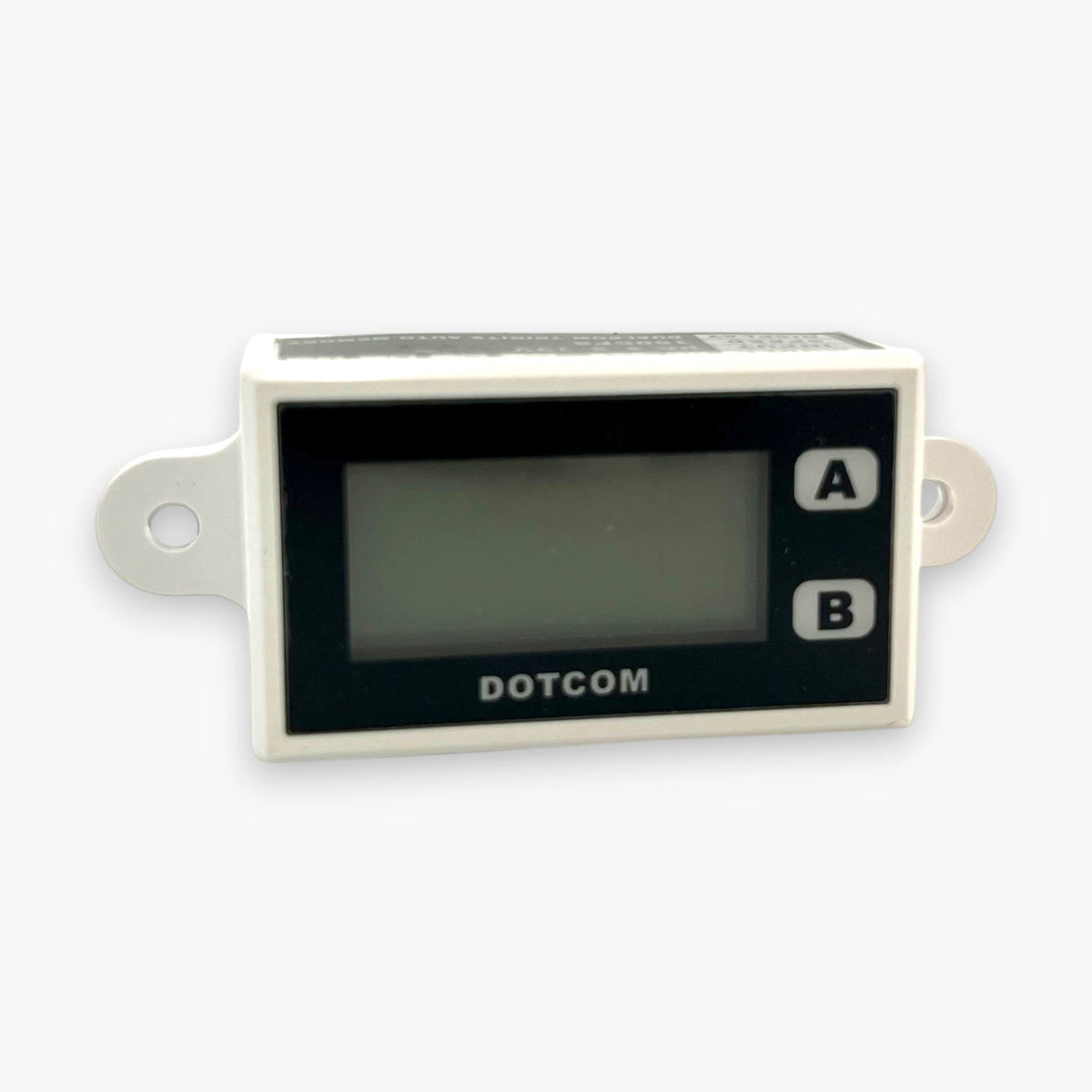

The DOTCOM DC-228 is a dual-row electronic counter with two independent 7-digit LCD displays, each driven by its own signal input. You can track two counts from one compact unit, such as coins in and prizes out, or credits and plays. It's built for arcade machines, vending machines, and other pulse-counting applications. It counts at up to 150 pulses per second, and its auto memory keeps both counts saved when power is removed. Color-coded wiring and a labeled connector make installation straightforward.

Features:

·         Two independent 7-digit LCD counters, each counting up to 9,999,999.

·         Separate A and B signal inputs, one for each display row.

·         Fast counting speed of up to 150 CPS (counts per second).

·         Auto memory retains counts through power loss.

·         A and B front buttons

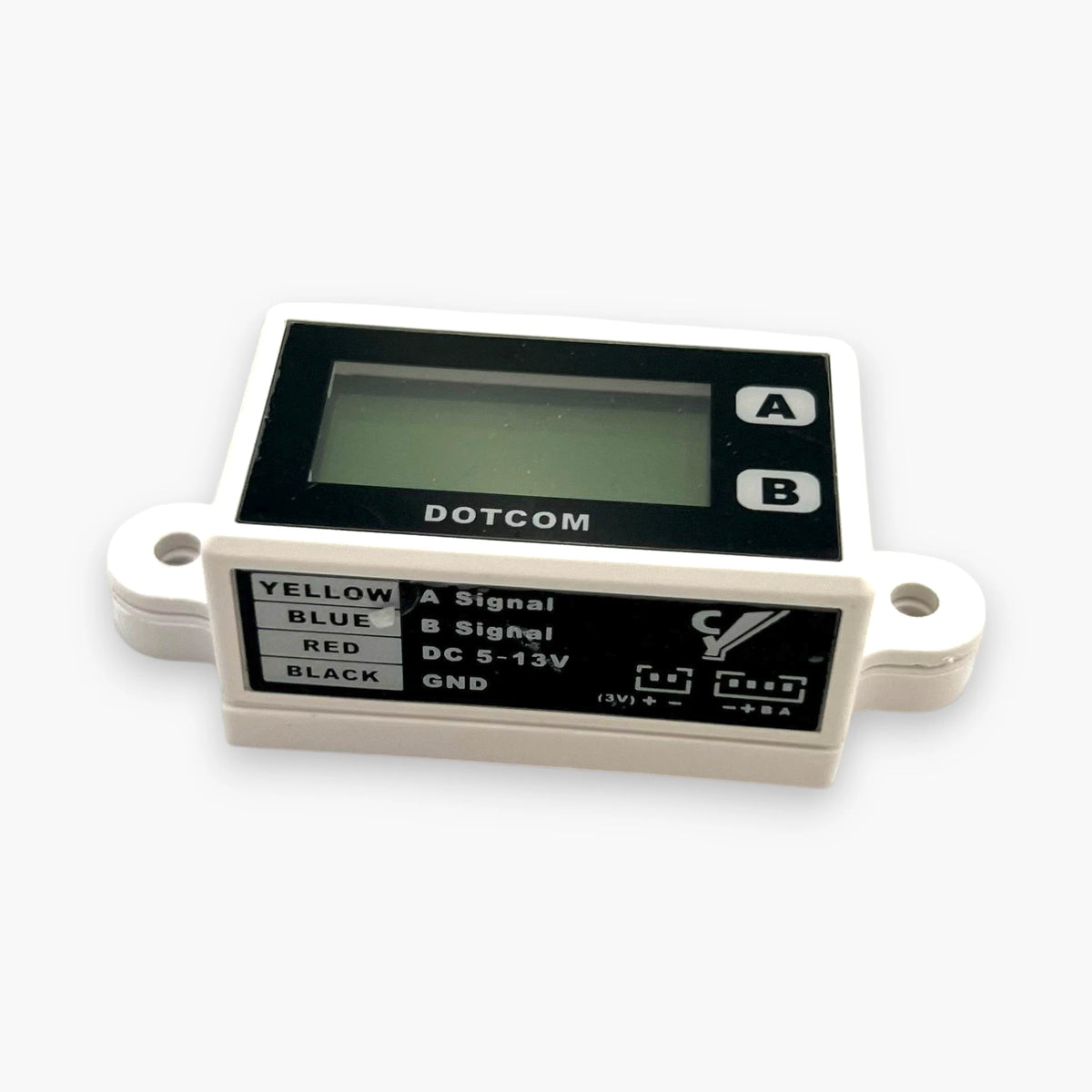

·         Color-coded wiring, printed on the unit for easy installation: Yellow = A signal, Blue = B signal, Red = DC power, Black = GND.

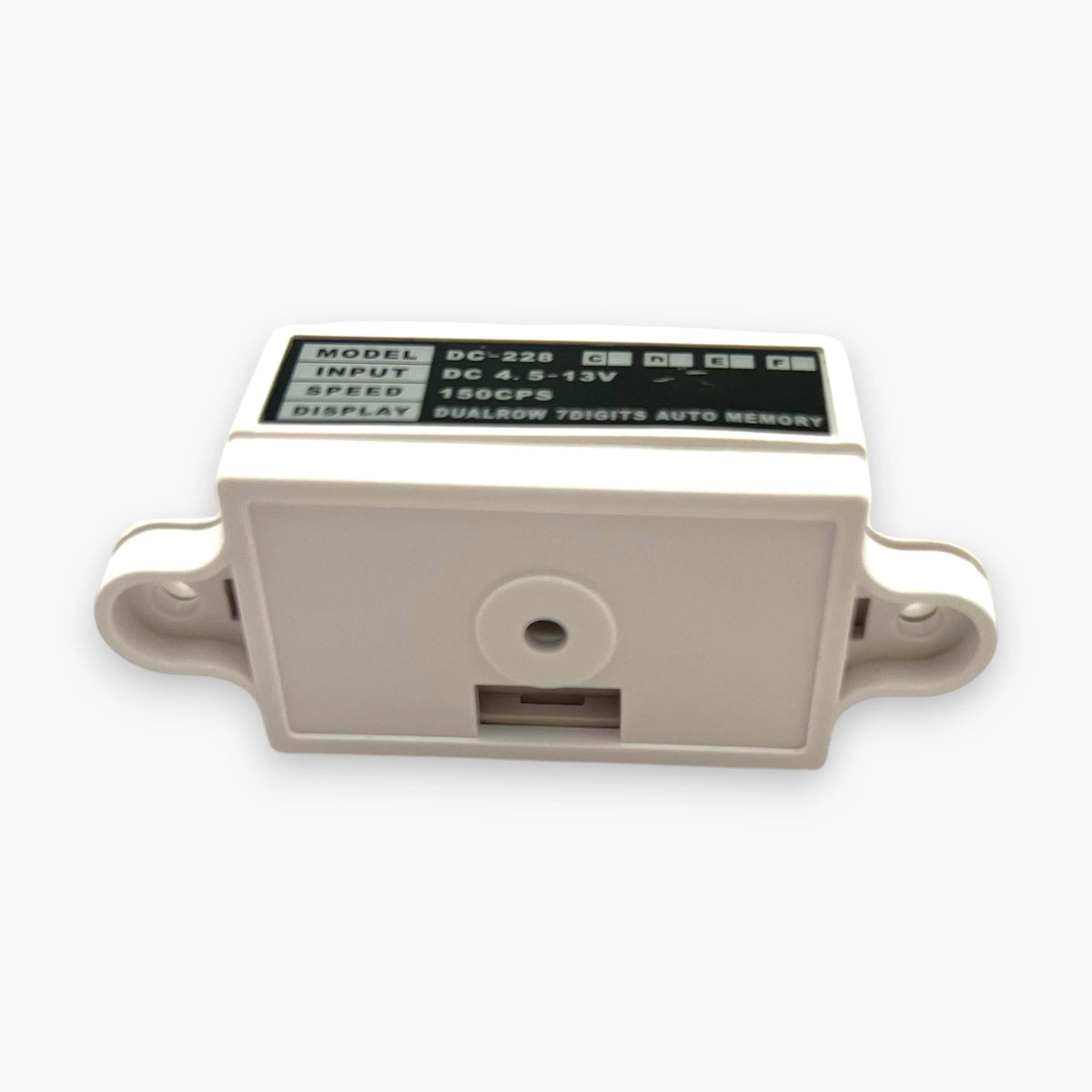

·         4-pin plug-in connector, plus an additional 2-pin port marked 3V

·         Compact white housing with two integrated screw-mounting tabs.

·         Suited to arcade machines, vending machines, coin mechanisms, and industrial or DIY counting projects.

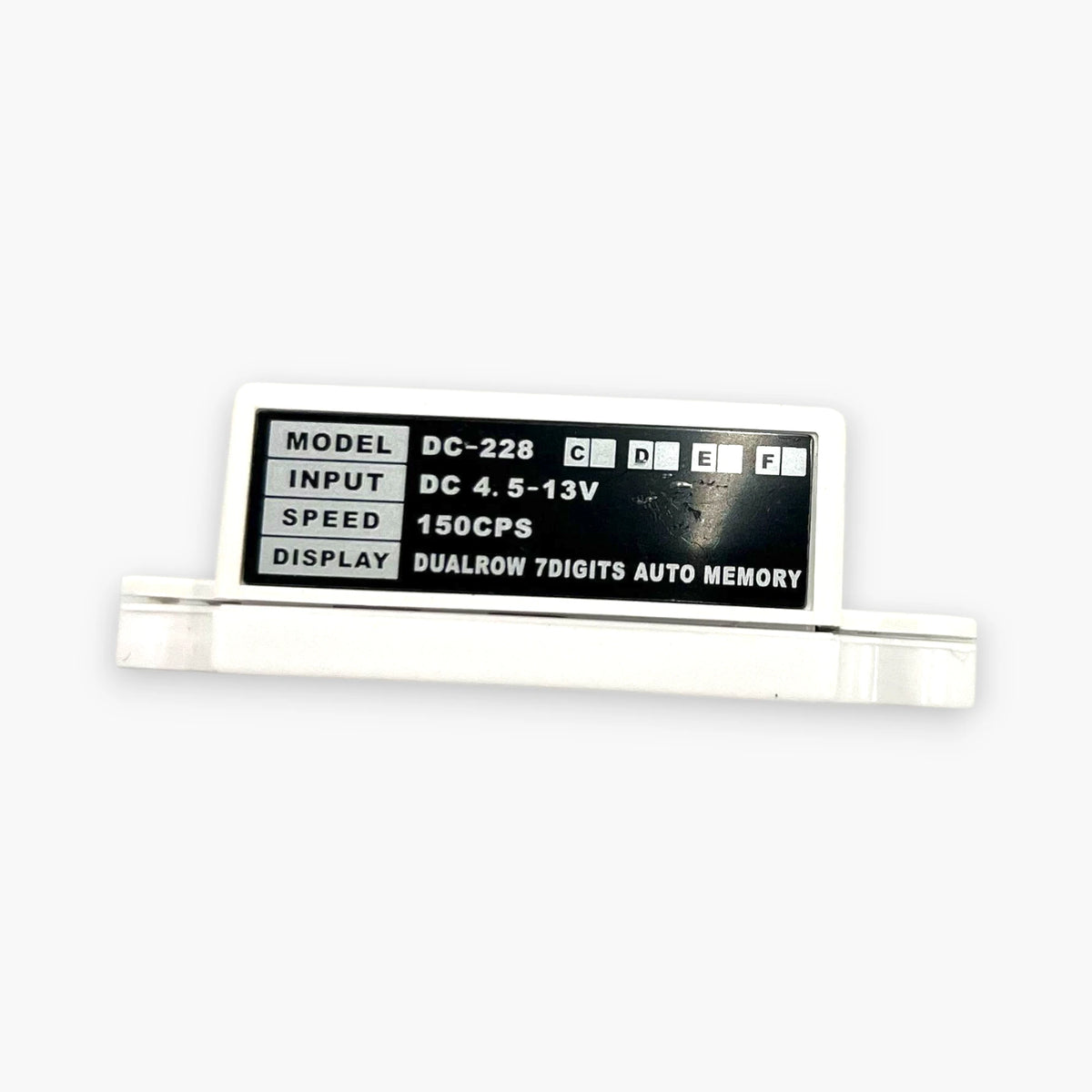

Specifications:

·         Brand/Model: DOTCOM DC-228

·         Input voltage: 5–13V DC

·         Counting speed: 150 CPS

·         Display: Dual-row LCD, 7 digits per row

·         Counting capacity: 9,999,999 per counter

·         Inputs: 2 (A signal, B signal)

·         Memory: Auto memory (non-volatile)

·         Wiring: Yellow (A signal), Blue (B signal), Red (DC 5–13V), Black (GND)

·         Connector: 4-pin (− + B A)

·         Mounting: 2 screw tabs

·         Dimensions: 6 x 2 x 2.5 cm

·         Weight: 18 g per counter

·         Package dimensions: 17 x 10 x 2.5 cm

·         Package weight: 82 g

·         Package includes: 4 pieces
