DC Open-Frame Linear Solenoid Electromagnet – 12V / 24V for Vending & Arcade Machines

DC Open-Frame Linear Solenoid Electromagnet – 12V / 24V for Vending & Arcade Machines

Condition: New

Replacement DC linear solenoid for compatible vending machines, arcade games and coin-operated equipment. When energized, the coil actuates the plunger to provide linear movement. The return spring returns the plunger to its resting position when power is removed.

Available in four variants with different voltage ratings, dimensions and shaft configurations. Each solenoid comes with pre-wired two-wire leads and frame mounting holes.

Select one of the four variants. Each purchase includes one solenoid in the selected model and voltage.

Features:

• Open-frame linear solenoid design.
• Spring return resets the plunger when power is removed.
• Pre-wired two-wire leads.
• Frame mounting holes for installation.
• Available in 12V DC or 24V DC, depending on the variant.
• Model identification marked on the frame.

Specifications:

• Type: DC open-frame linear solenoid
• Return mechanism: Spring return
• Electrical connection: Two wired leads
• Operating voltage: 12V DC or 24V DC, depending on the variant
• Quantity included: One solenoid in the selected variant

Available Variants:

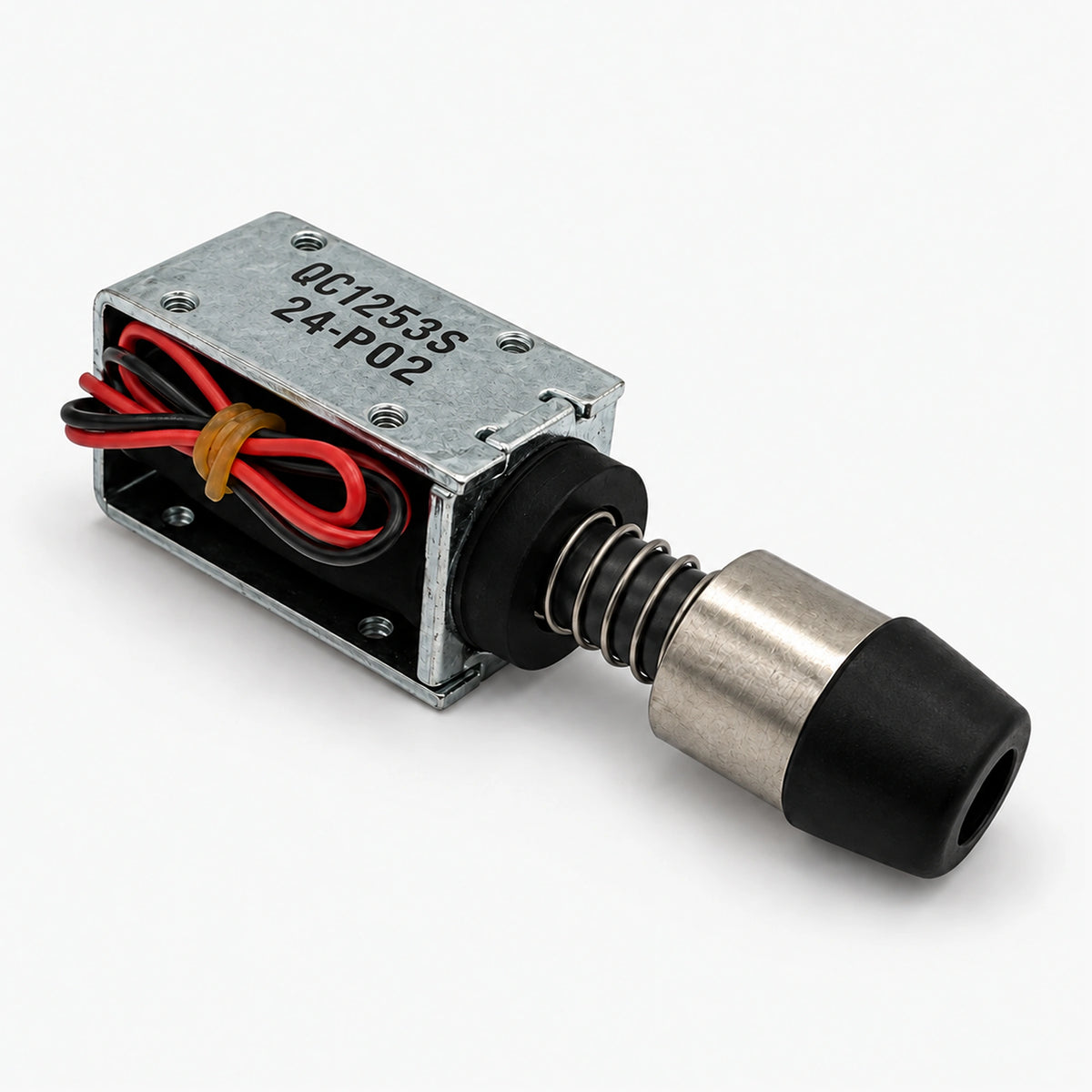

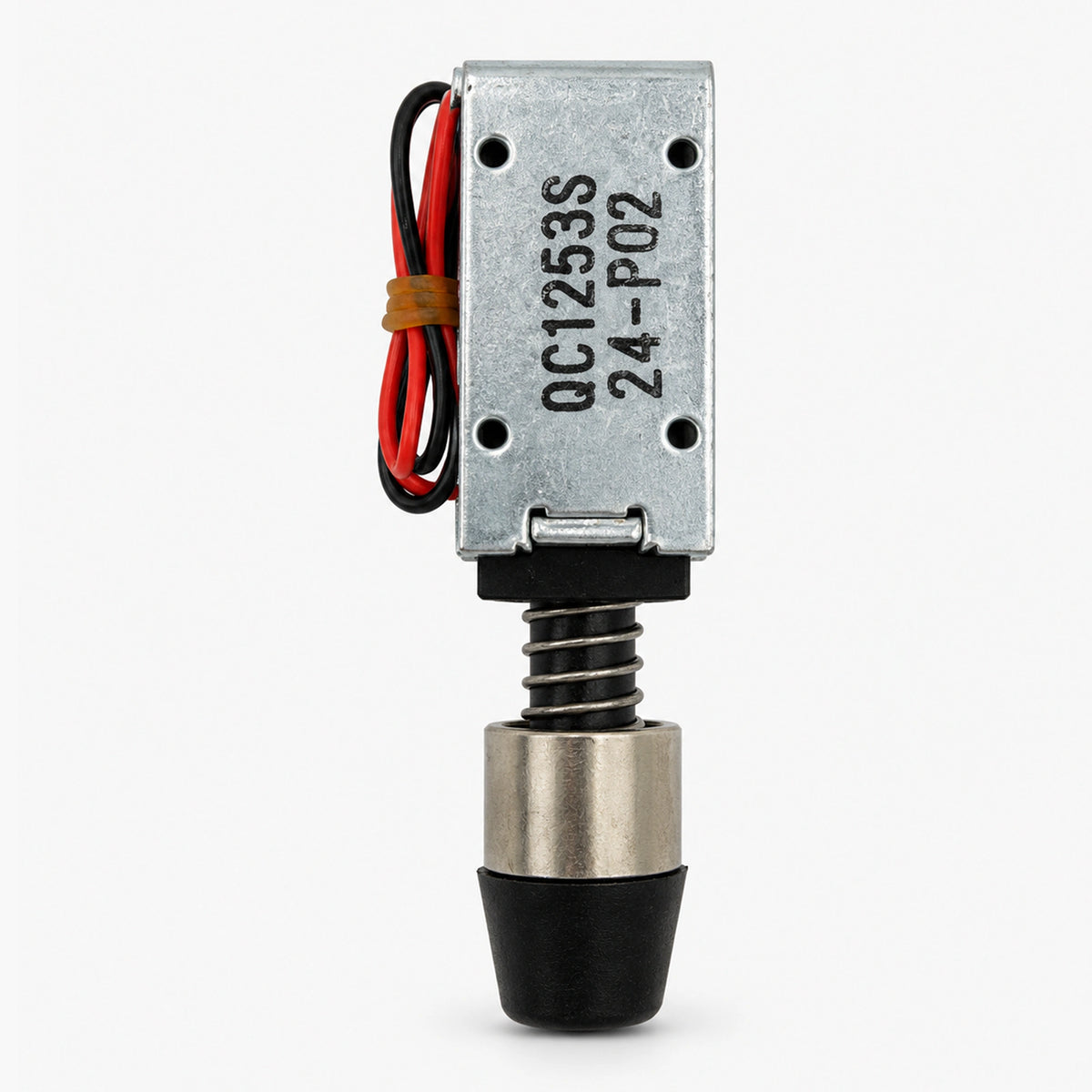

1. QC1253S — 24V DC

• Model: QC1253S
• Operating voltage: 24V DC
• Frame marking: QC1253S / 24-P02
• Dimensions: 10.5 × 3.2 × 3.5 cm
• Weight: 260 g
• Appearance: Silver-colored frame with red and black leads
• End configuration: Cylindrical end assembly with a black cap

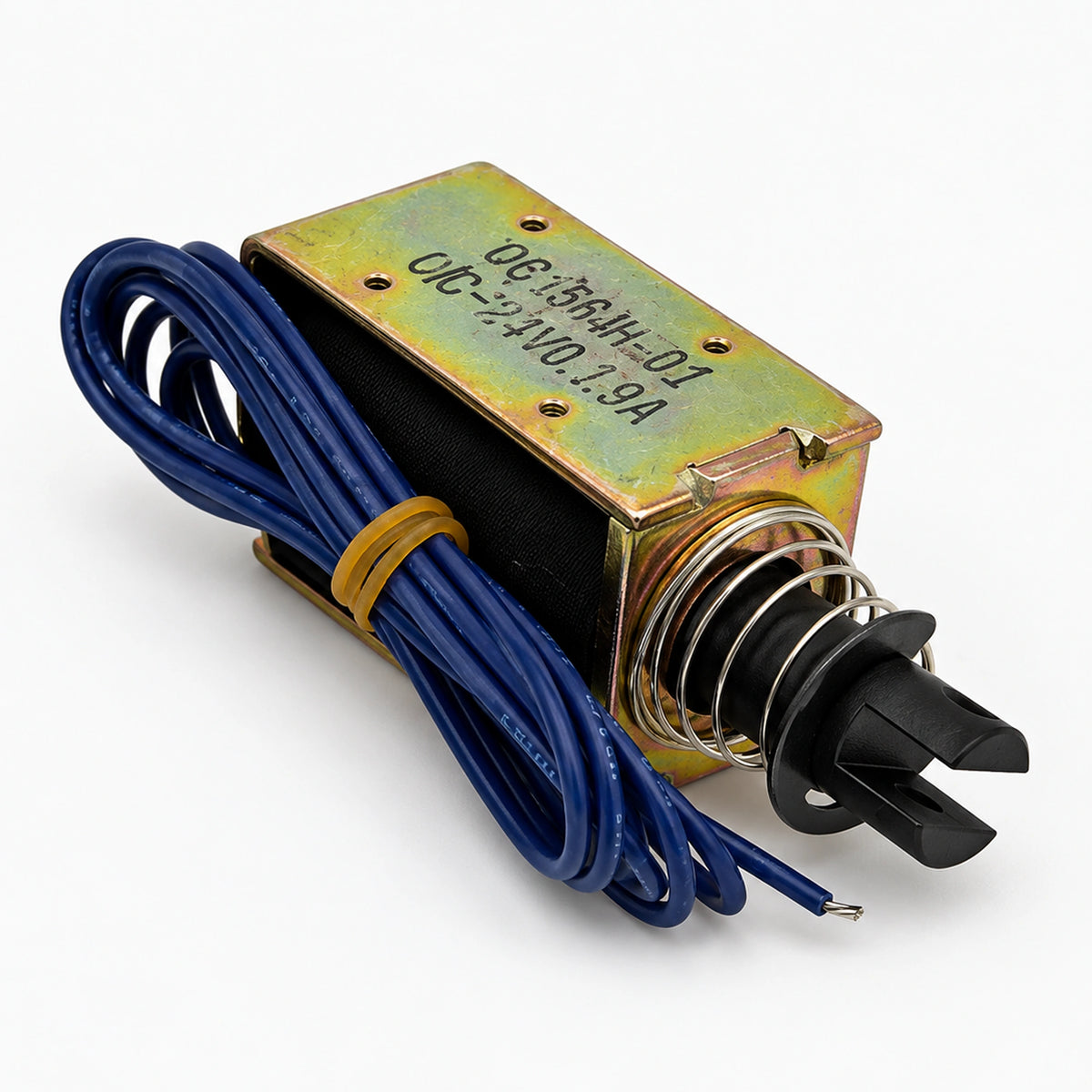

2. QC1564H-01 — 24V DC

• Model: QC1564H-01
• Operating voltage: 24V DC
• Current rating: 0.9A
• Dimensions: 11 × 3 × 4 cm
• Weight: 381 g
• Appearance: Yellow/gold-colored frame with blue leads
• End configuration: Forked, cross-drilled plunger end with a threaded projection at the opposite end

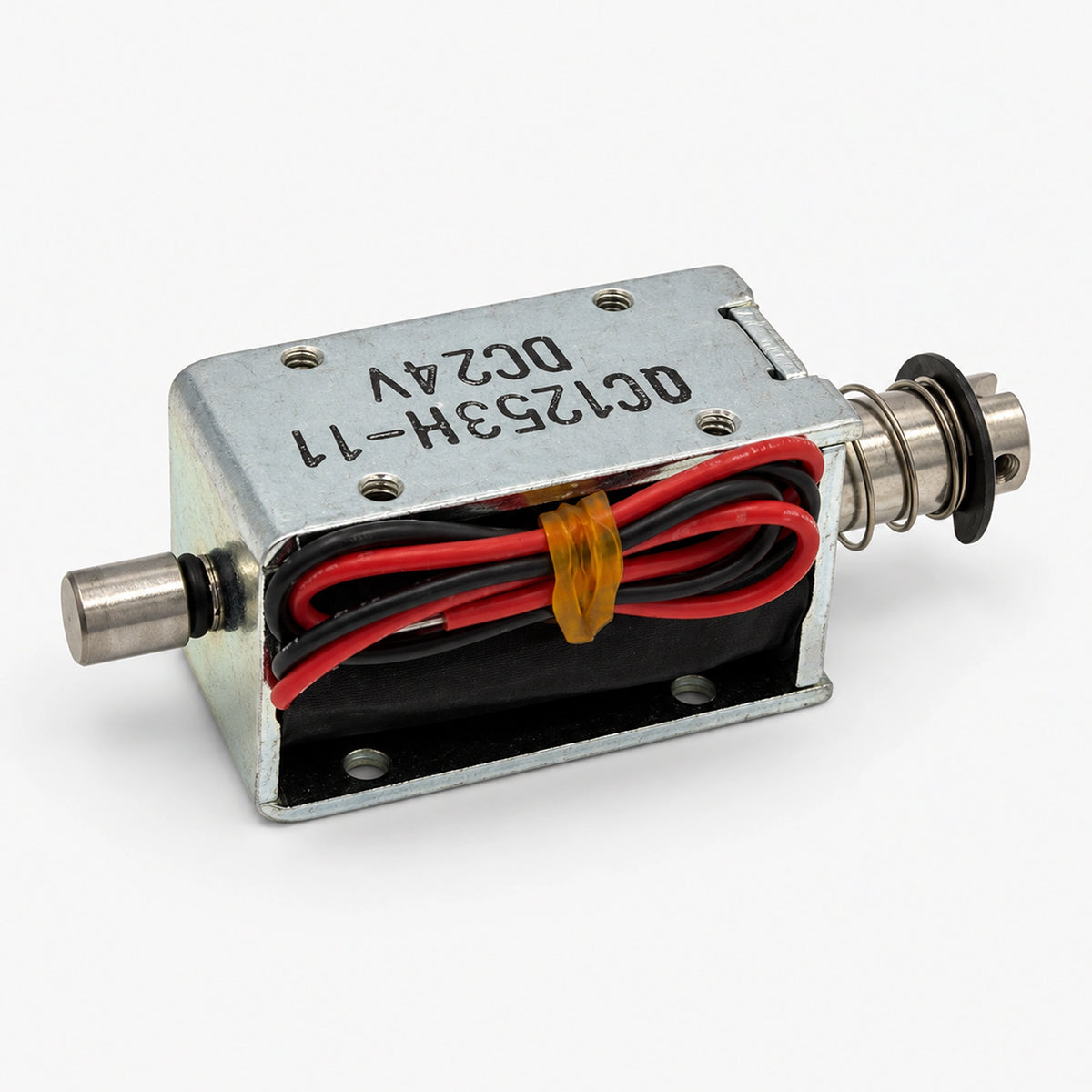

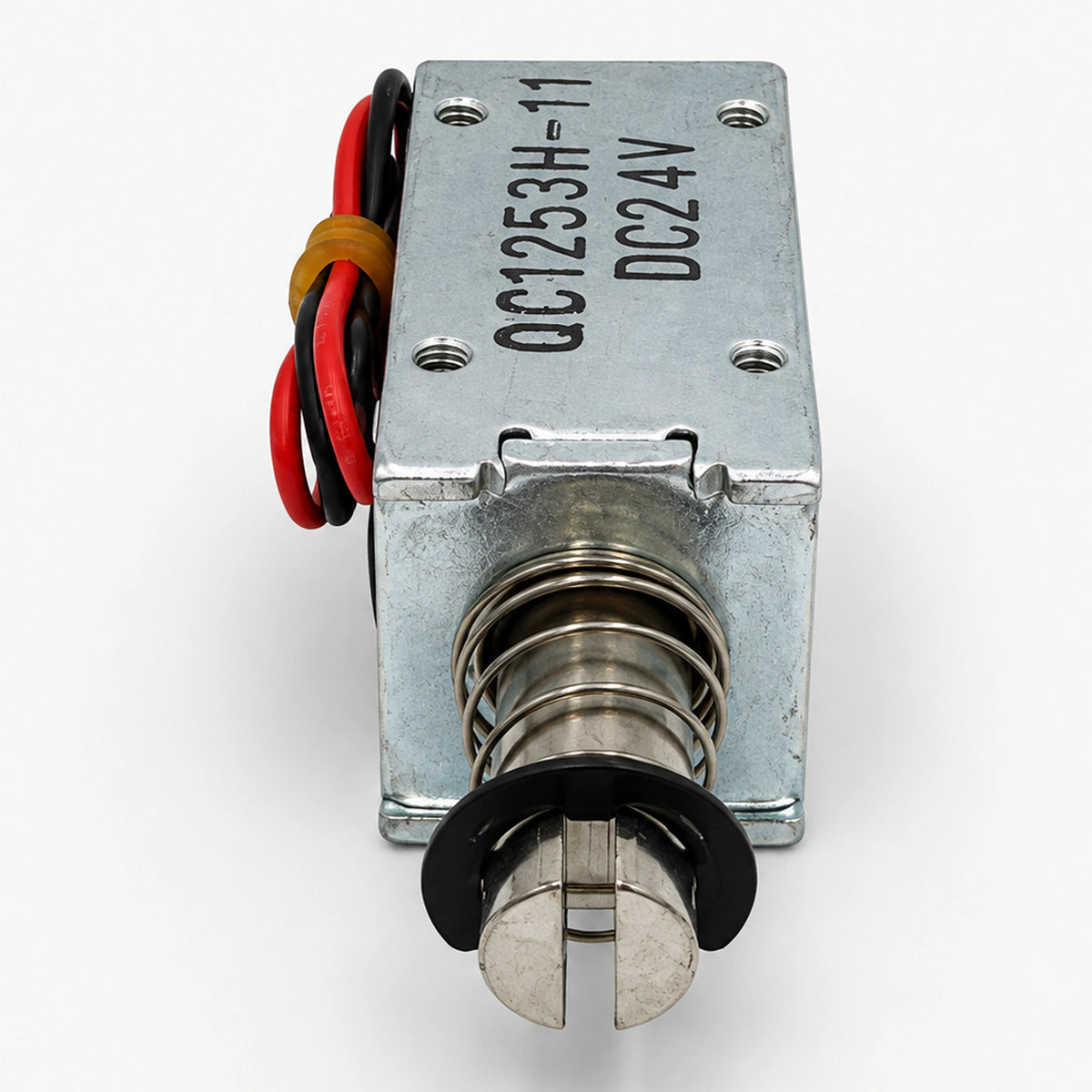

3. QC1253H-11 — 24V DC

• Model: QC1253H-11
• Operating voltage: 24V DC
• Dimensions: 9 × 3 × 3 cm
• Weight: 218 g
• Appearance: Silver-colored frame with red and black leads
• End configuration: Forked plunger end with a projecting shaft at the opposite end

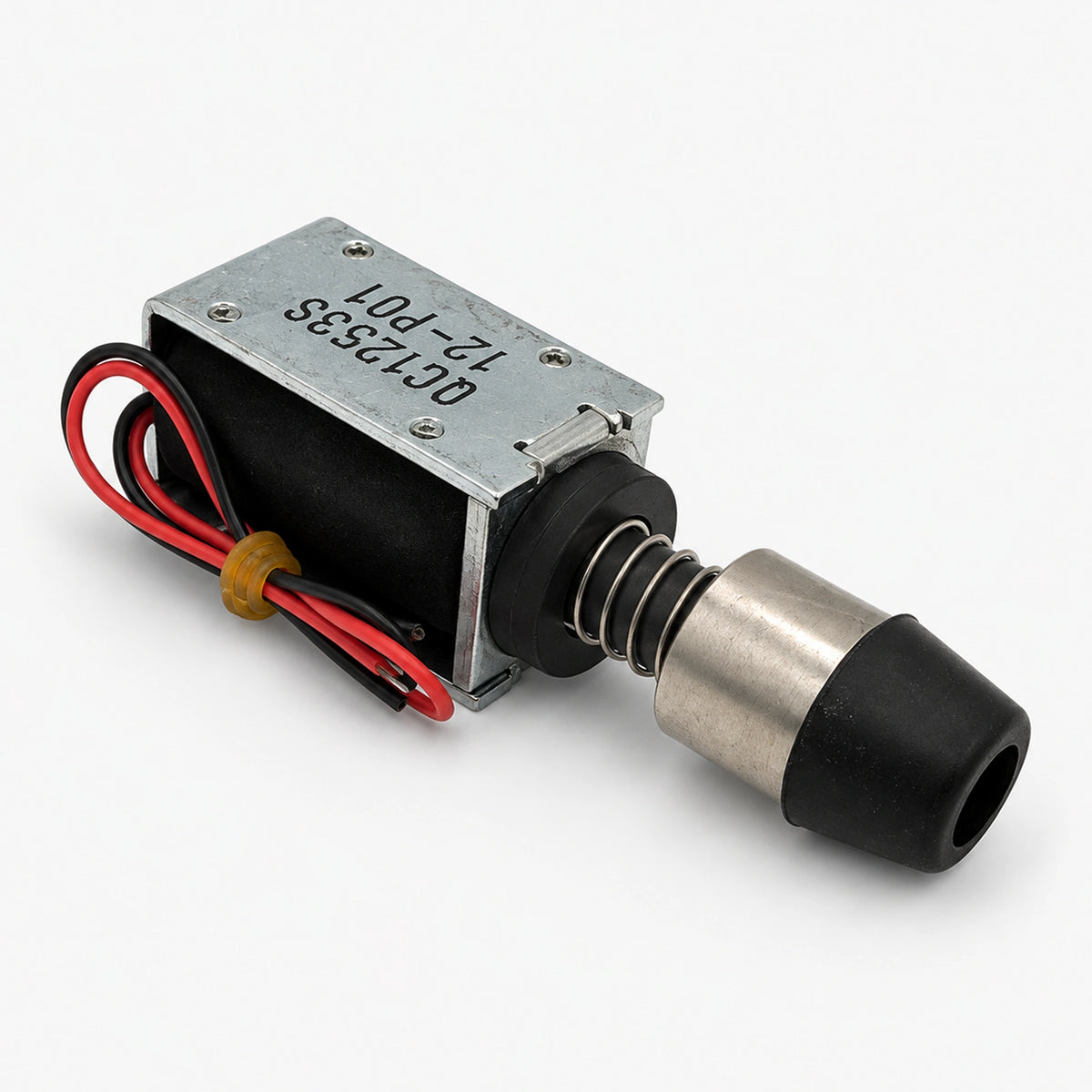

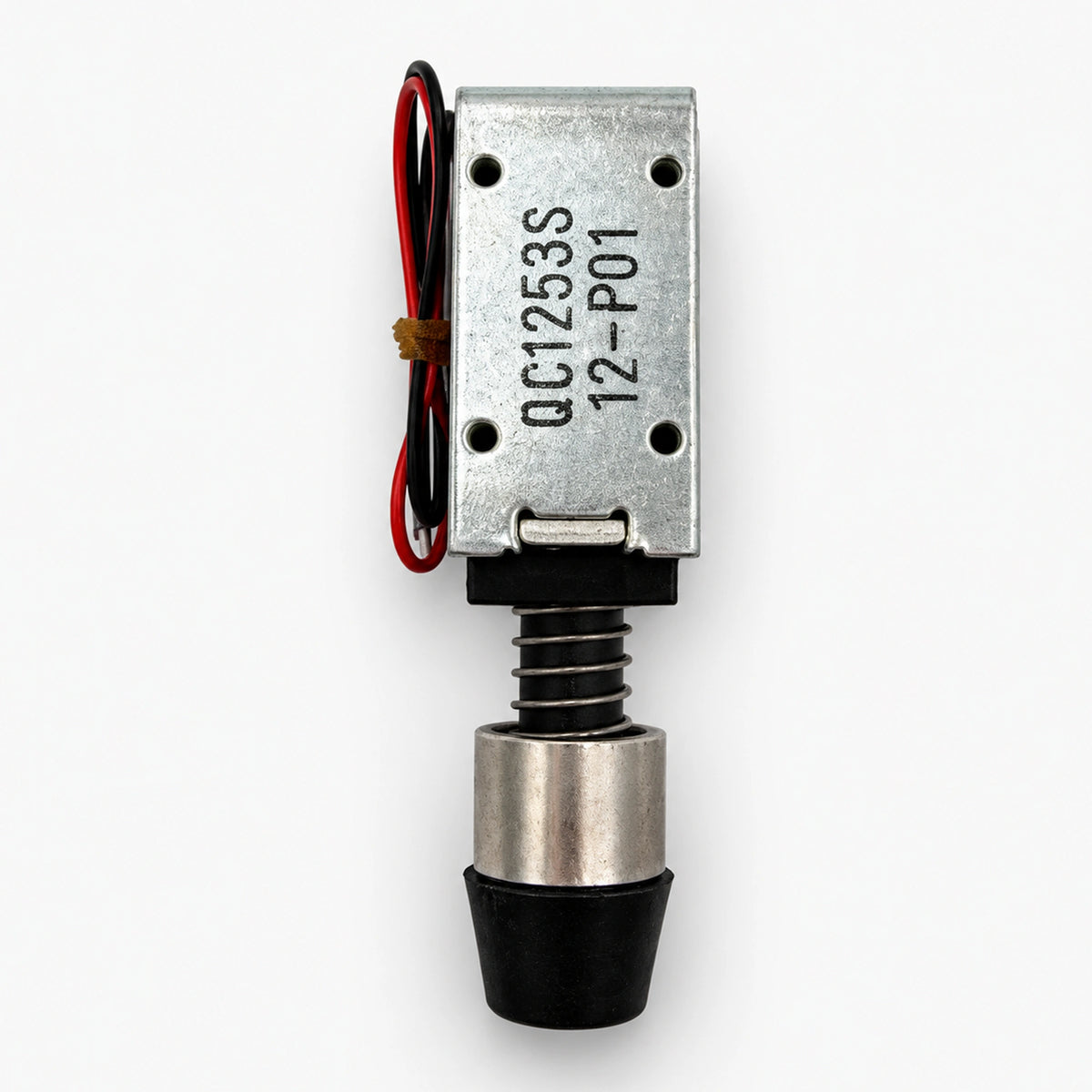

4. QC1253S — 12V DC

• Model: QC1253S
• Operating voltage: 12V DC
• Frame marking: QC1253S / 12-P01
• Dimensions: 10.5 × 2.5 × 3 cm
• Weight: 263 g
• Appearance: Silver-colored frame with red and black leads
• End configuration: Cylindrical end assembly with a black cap

Applications:

For compatible mechanisms in vending machines, arcade and redemption games, claw machines, prize lockers and other coin-operated equipment. Potential applications include gates, latches, locks and release mechanisms, provided the selected solenoid matches the equipment’s electrical and mechanical requirements.
