Metal Push Button Switch - Flat Head - No Lock (Set of 6)
Metal Push Button Switch - Flat Head - No Lock (Set of 6)
No se pudo cargar la disponibilidad de retiro

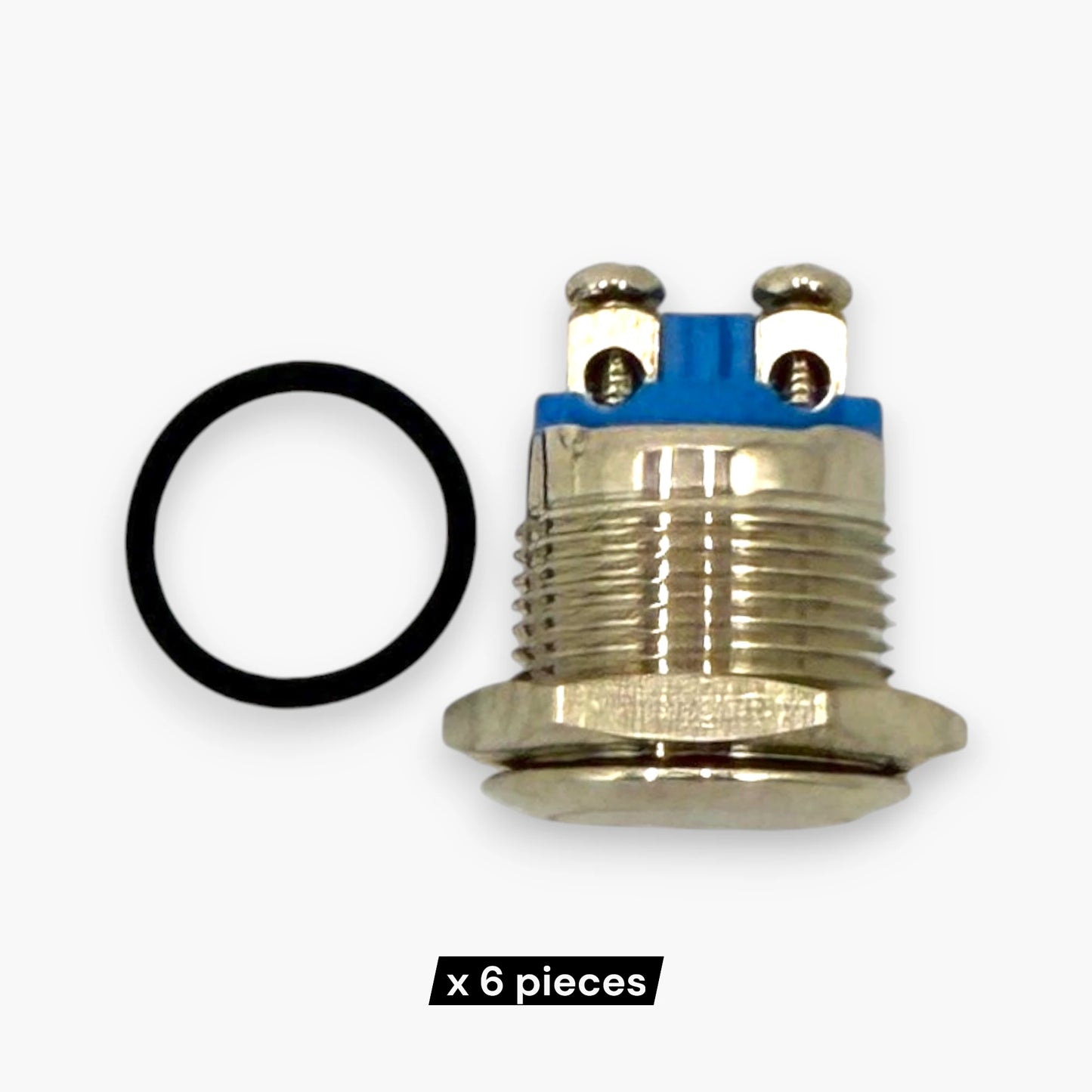

16mm Metal Momentary Push Button Switch – Flat Head, SPST 1NO, Screw Terminals, IP65 (Set of 6)
Condition: New
Switch, engineered for reliable performance in commercial and industrial applications. Featuring a durable flat-head stainless steel button, SPST (1NO) contact configuration, and momentary (self-reset) operation, this switch is ideal for arcade machines, vending machines, kiosks, gaming cabinets, control panels, industrial equipment, and DIY electronics.
Designed with IP65 water and dust resistance and IK08 impact protection, it delivers dependable operation even in demanding environments. The screw terminals provide quick, secure wiring without the need for soldering.
Features:
- Momentary (self-reset) operation: Press to activate, release to return
- SPST (1NO) normally open contact configuration
- Durable flat-head metal actuator
- Screw terminals for secure and reliable wiring
- Stainless steel / nickel-plated brass construction
- Includes sealing O-ring and mounting nut for secure installation
- Ideal for arcade machines, vending machines, kiosks, gaming cabinets, control panels, industrial equipment, automotive projects, and DIY electronics
Specifications:
- Mounting Hole: 16mm
- Dimensions (cm): 2 x 2 x 2.5
- Weight: 10 gr
- Material: Stainless steel/ Nickel plated brass
- Connection: Screw terminals / Solder pins
- Rating: 3A 250V AC
- Protection Rating: IP65/IK08
- Operation Temperature: -20 - 55
- Panel Thickness: 1 - 6mm
- Package Dimensions (cm): 10 x 7 x 2
- Package Weight: 70 gr
- Package Includes: 6 pieces

-
