- Basketball Machine Scoring Sensor RNPK2M – Diffuse Photoelectric Eye, NPN, 10–30V DC
- Condition: New

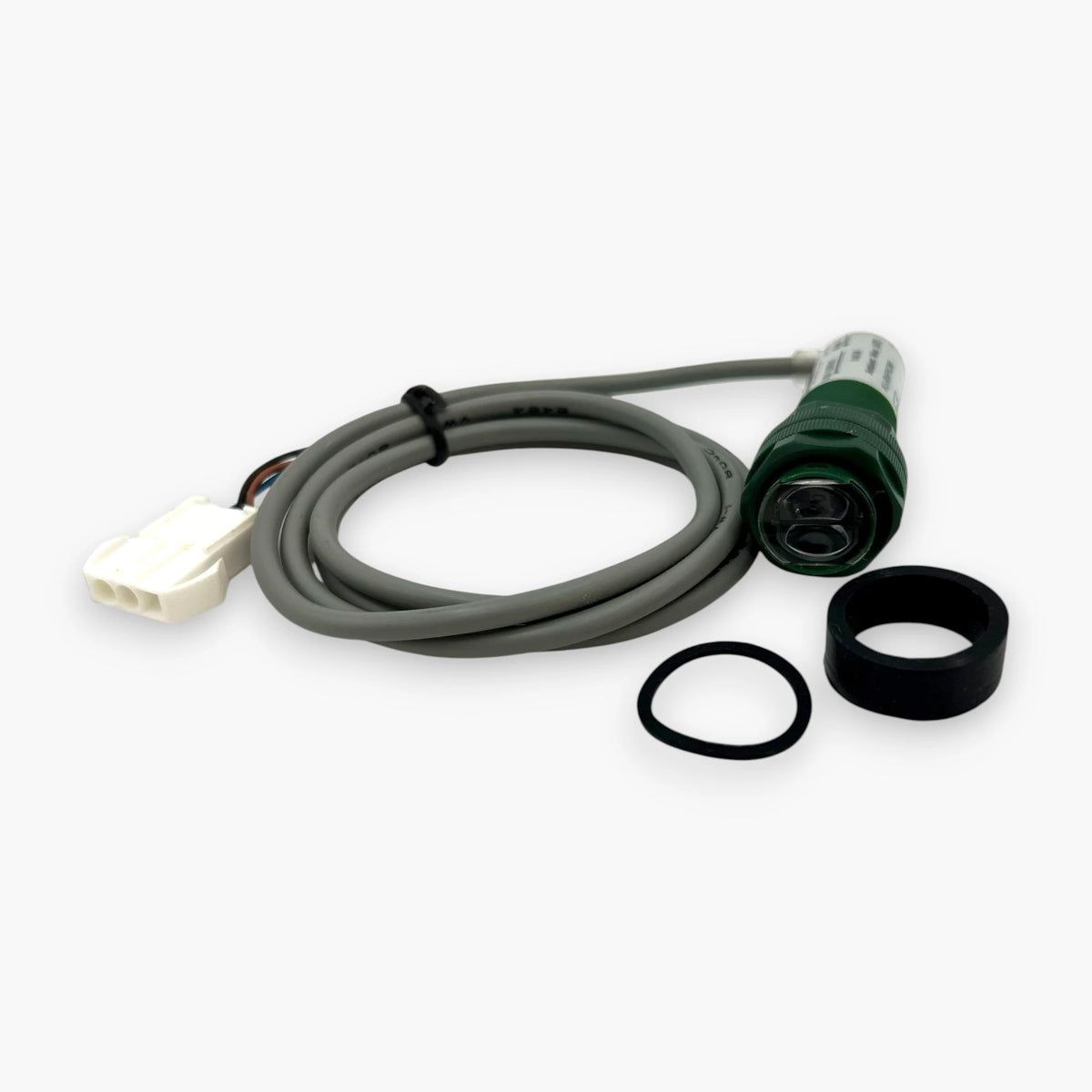

- This RNPK2M replacement scoring sensor is for arcade basketball machines. It mounts at the hoop and detects each ball that goes through, so the machine scores accurately. It's a diffuse reflective type, so no separate reflector is needed. It comes pre-wired with a 3-pin plug for quick installation.
- Features:
- Direct replacement scoring sensor for arcade basketball machines.
- Diffuse reflective design with the emitter and receiver in one unit.

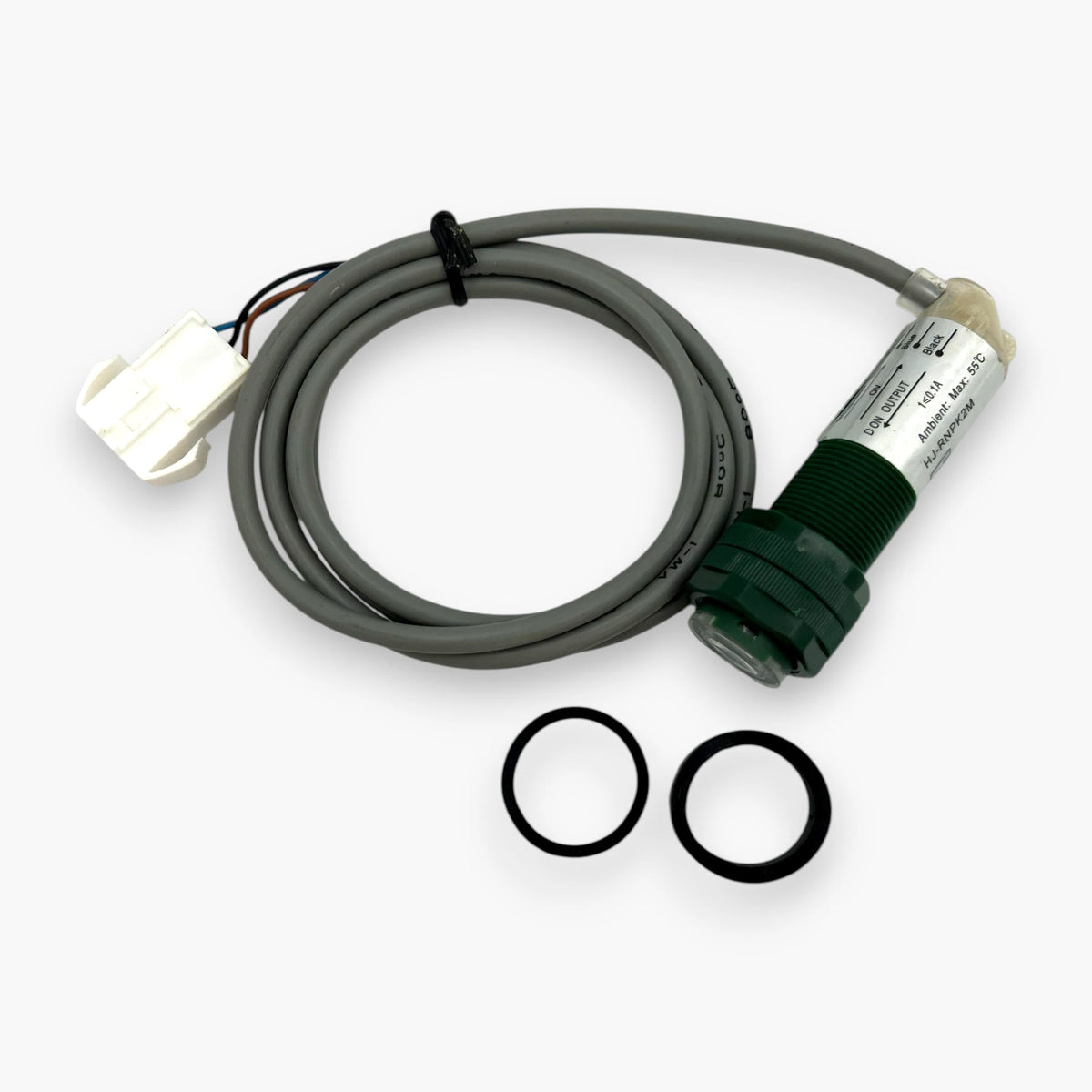

- Threaded body with two locking nuts for adjustable mounting.

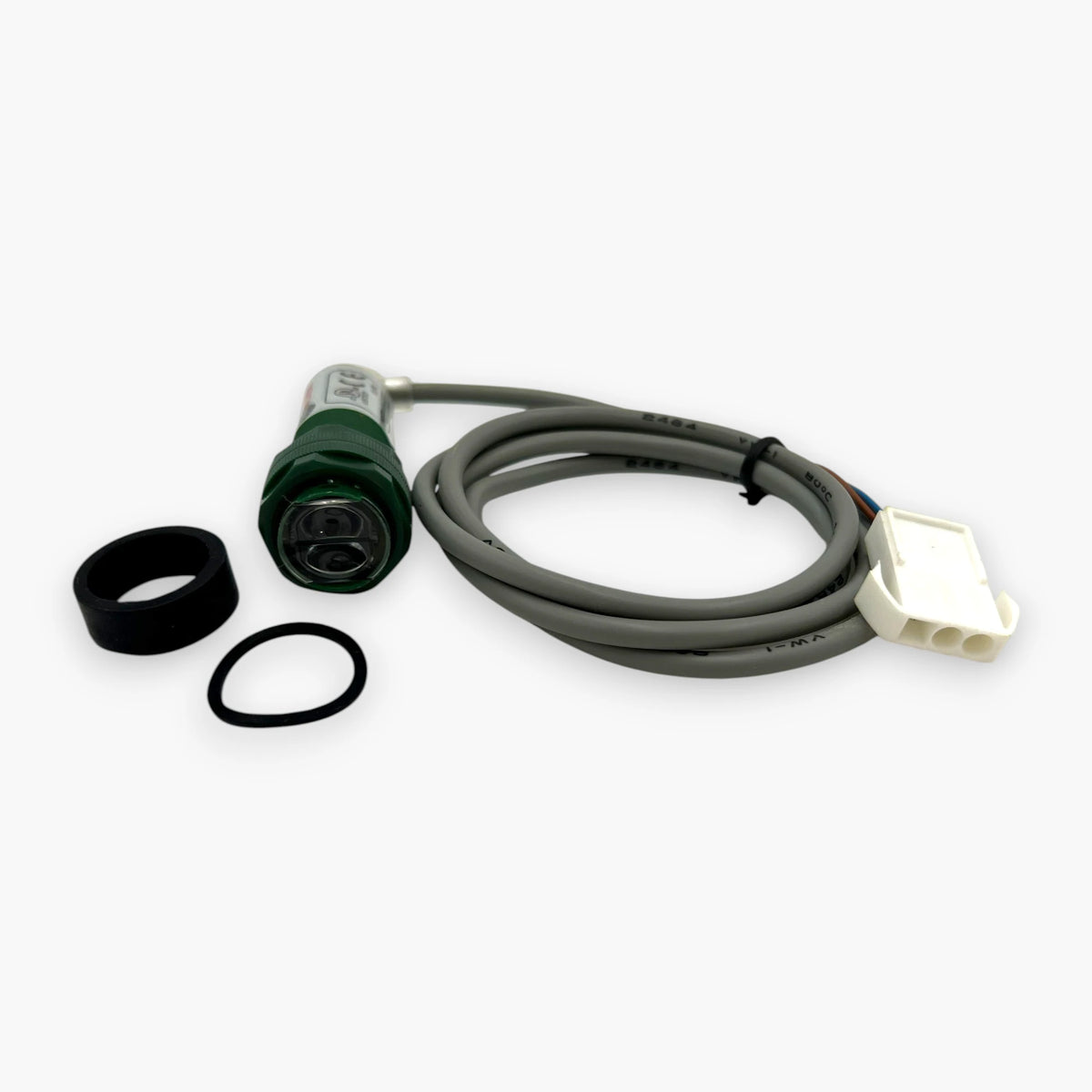

- Pre-wired cable with a 3-pin plug, with wiring printed on the sensor body.
- Specifications:
- Model: RNPK2M
- Dimensions(cm): 2.3 x 2.3 x 7 cm
- Weight: 41 gr
- Shell Color: Green
- Output: NPN, Dark-ON
- Supply voltage: 10–30V DC
- Load current: ≤ 0.1A
- Max ambient temperature: 55°C

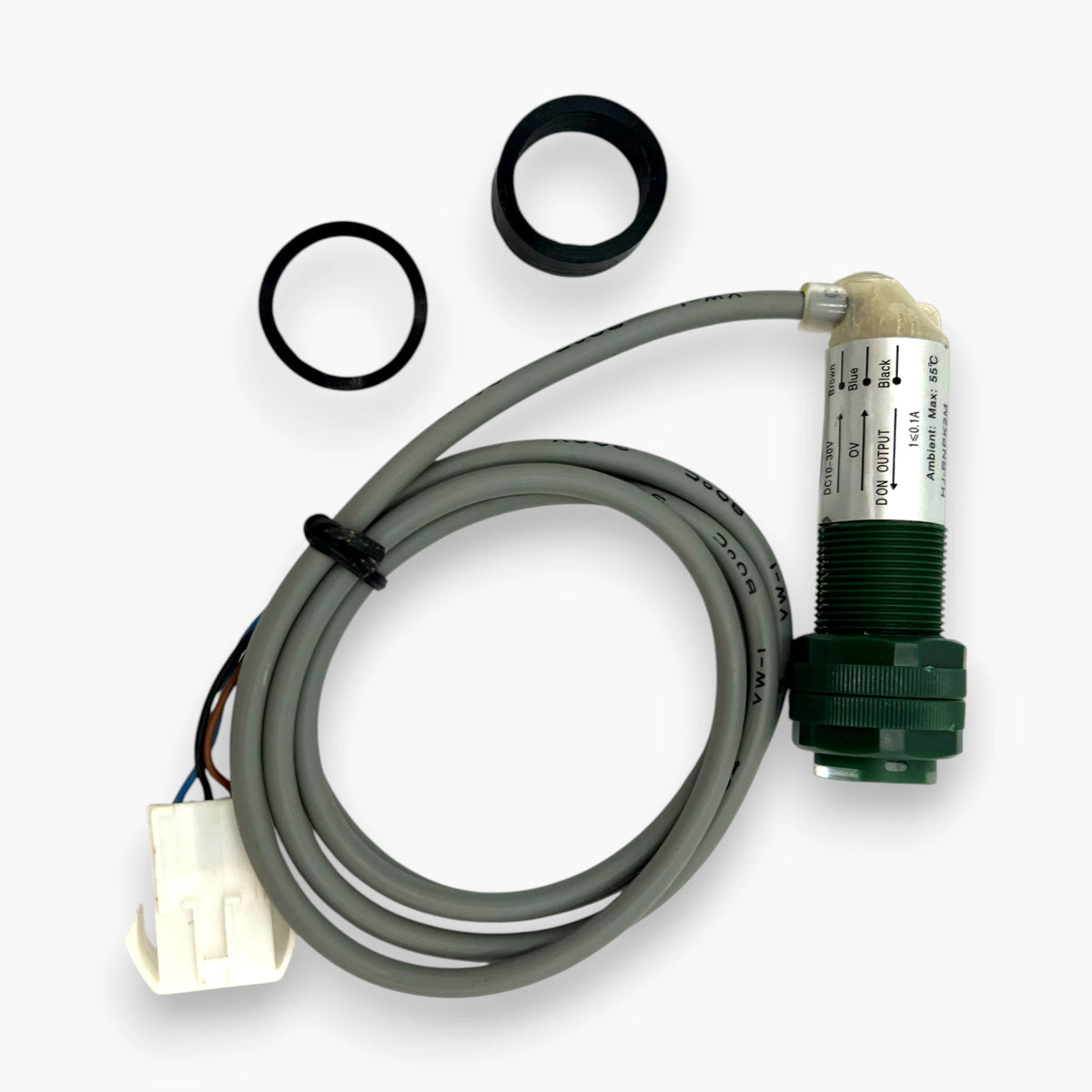

- Wiring: Brown (+V), Blue (0V), Black (Output)
- Package includes: 1 piece
