Zing Ear G5T16 16A Micro Switch with Long Lever – SPDT Snap-Action Limit Switch, 125/250VAC (Set of 6)

Zing Ear G5T16 16A Micro Switch with Long Lever – SPDT Snap-Action Limit Switch, 125/250VAC (Set of 6)

Condition: New

The Zing Ear G5T16 is a heavy-duty snap-action micro switch with a long straight lever. It is rated 16A at 125/250VAC and works as a general-purpose replacement or limit switch in arcade and amusement machines, vending equipment, and appliances. It has an SPDT (1NO + 1NC) contact layout and quick-connect terminals, and it is sold as a set of 6.

Features:

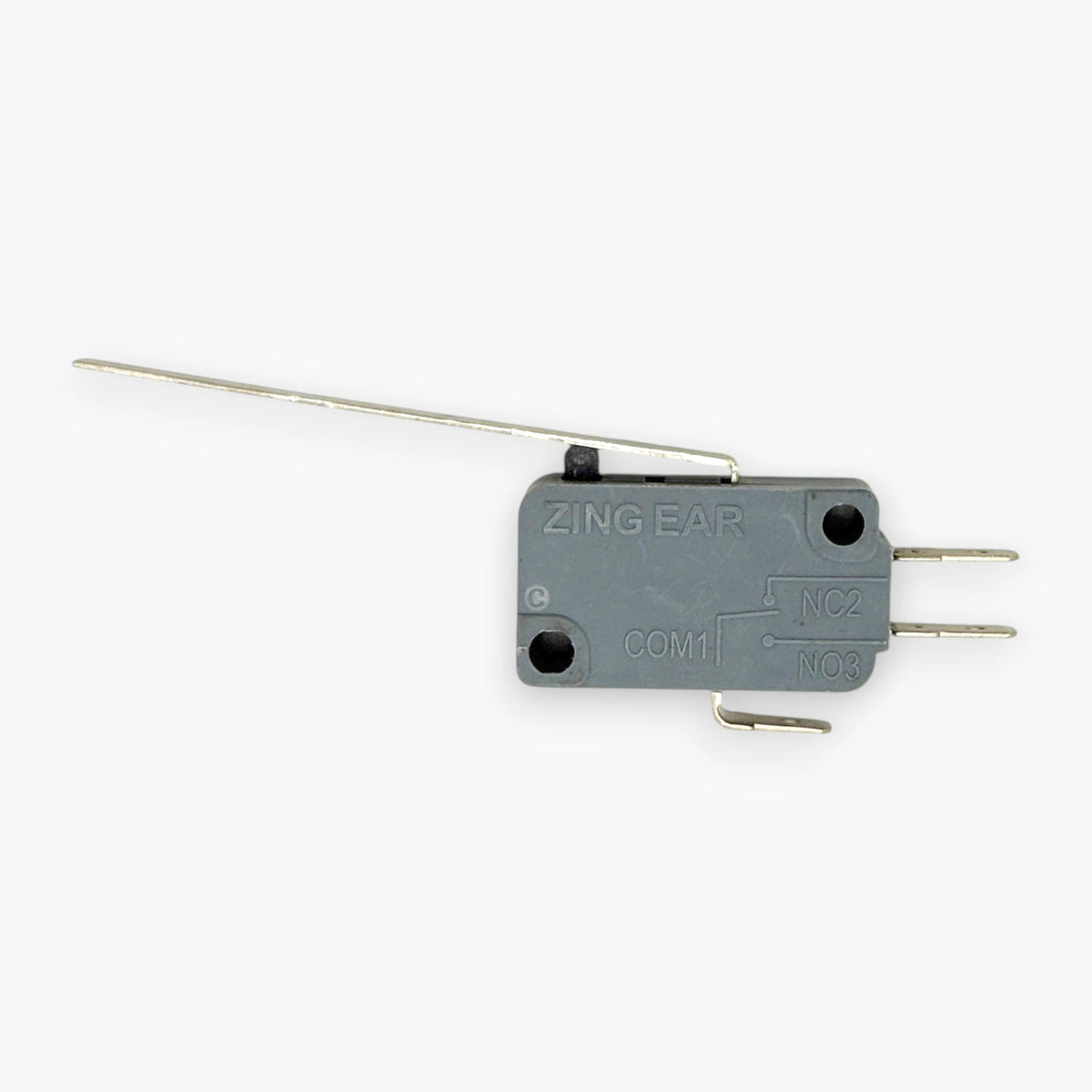

• SPDT contact (1NO + 1NC), with Common, Normally Closed, and Normally Open terminals marked on the housing (COM1 / NC2 / NO3).

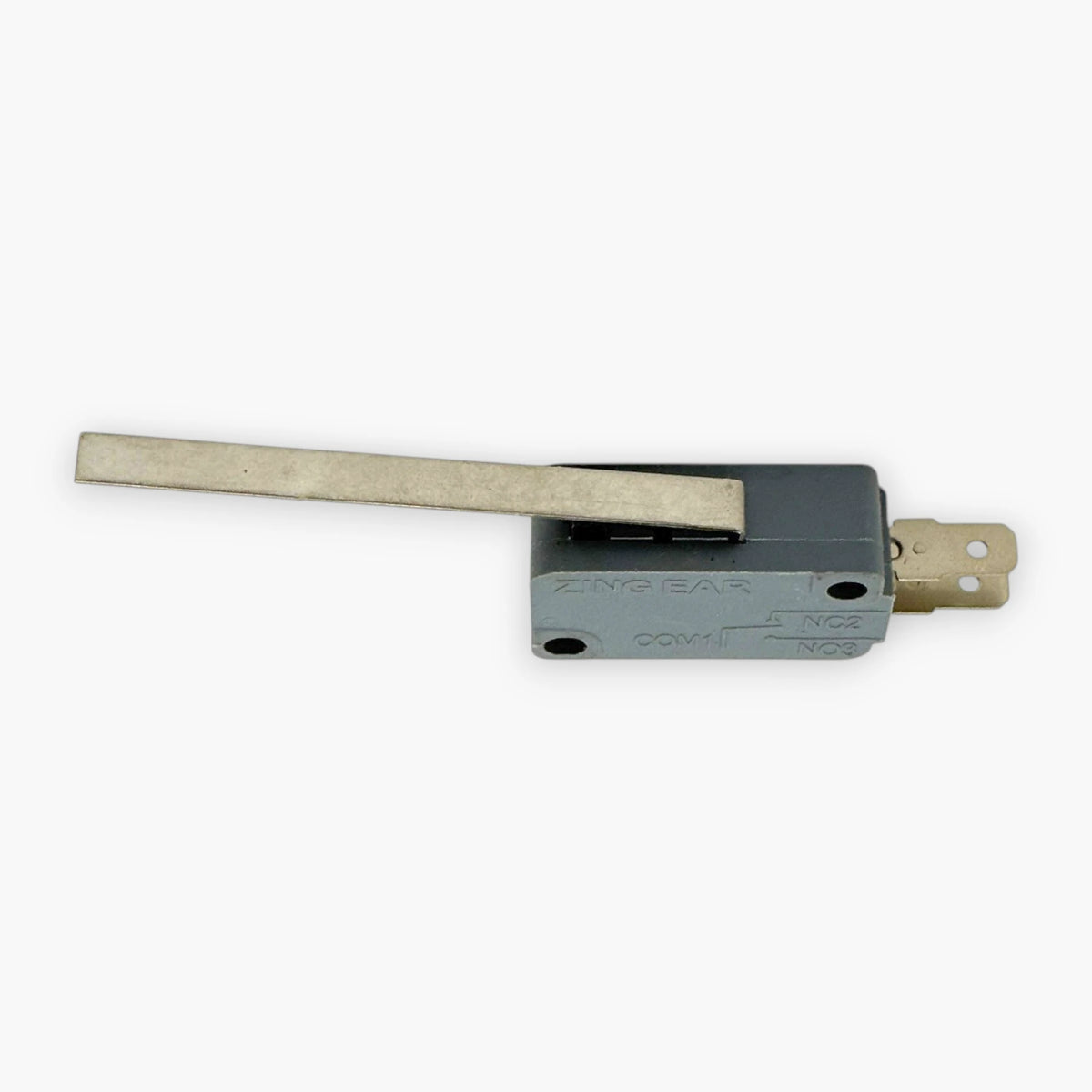

• Long straight metal lever that extends the actuation point and reduces the force needed to trigger the switch.
• Snap-action mechanism for a fast, positive contact changeover.

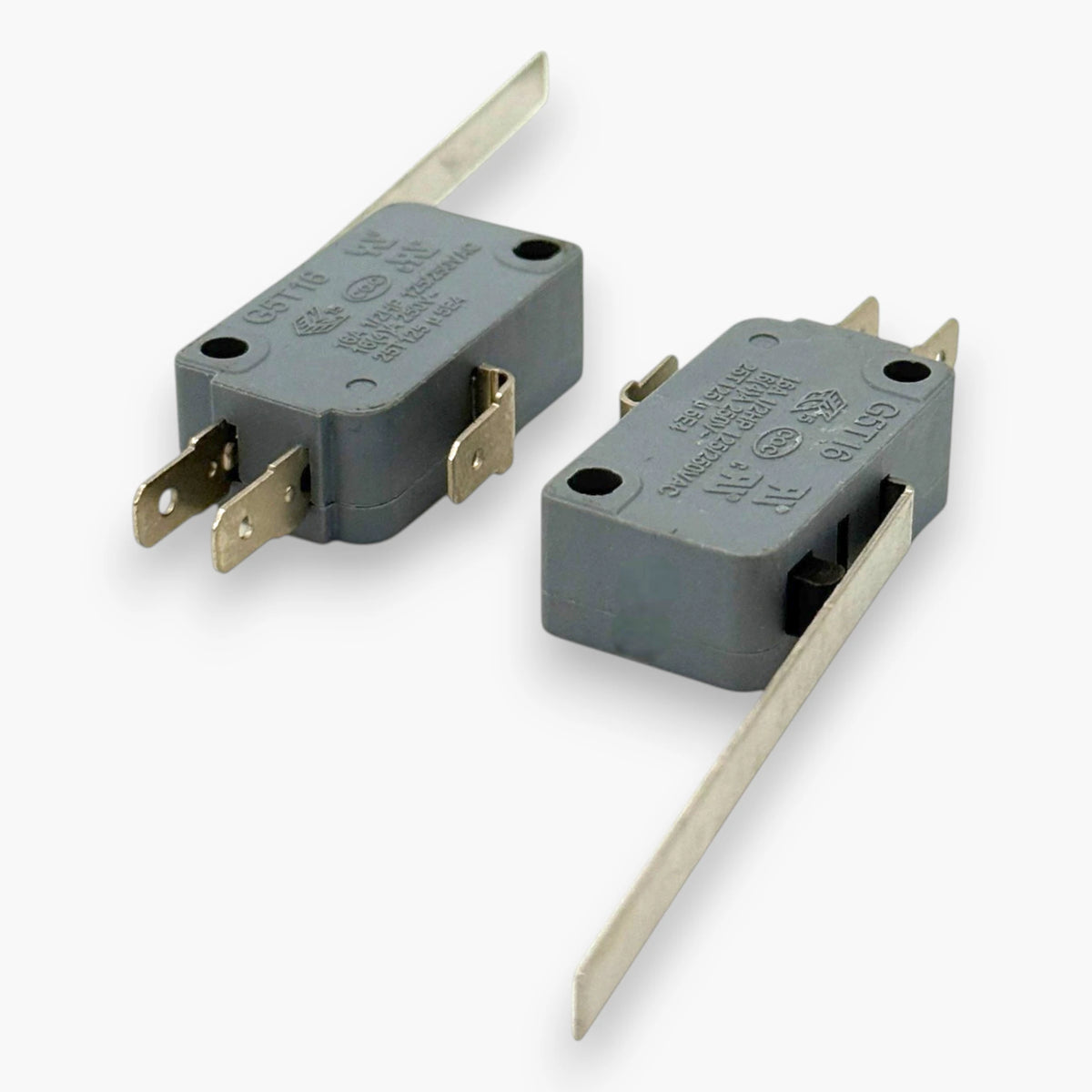

• Three quick-connect (spade) terminals that take standard female crimp connectors.
• Two through-holes for screw mounting.
• High current capacity, rated 16A 1/2HP at 125/250VAC.

Specifications:

• Brand: Zing Ear
• Model: G5T16
• Switch Type: Snap-action micro switch, momentary
• Circuit Type: SPDT (1NO + 1NC)
• Actuator: Long straight lever
• Electrical Rating: 16A 1/2HP 125/250VAC; 16(4)A 250VAC
• Operating Temperature: -25°C to +125°C (T125)
• Electrical Life: 50,000 cycles (rated)
• Mechanical Life: 1,000,000 cycles
• Dielectric Strength: AC 1500V, 50/60Hz, 1 min
• Terminal Type: Quick-connect (spade) tabs, 3 terminals
• Mounting: Screw mount, 2 through-holes
• Body Size: 27.8 x 10.3 mm
• Overall Dimensions (cm, including lever): 7.5 x 1 x 2
• Weight: 10 g per piece
• Color: Grey
• Package Dimensions (cm): 10 x 7 x 3
• Package Weight: 60 g

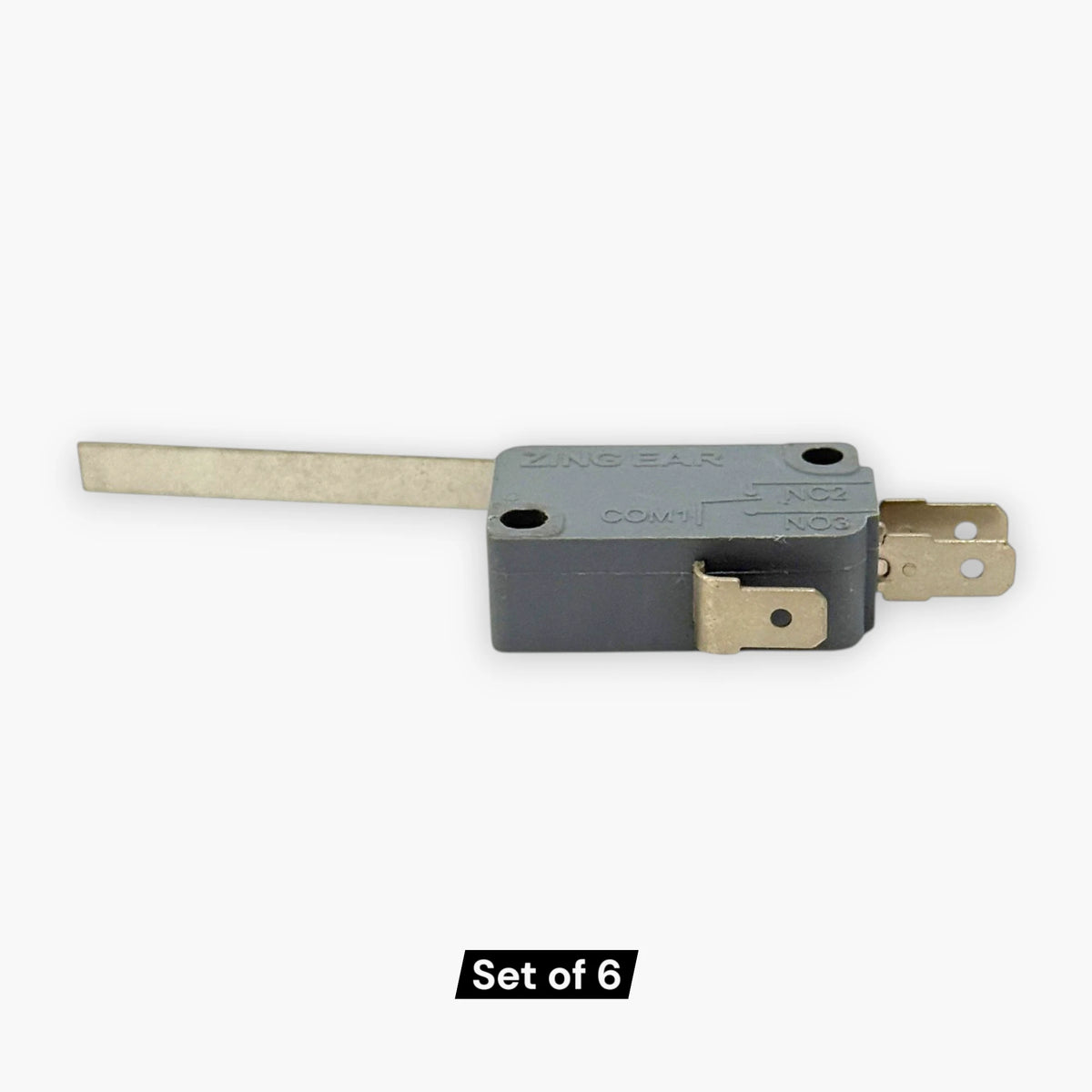

• Package Includes: 6 pieces
