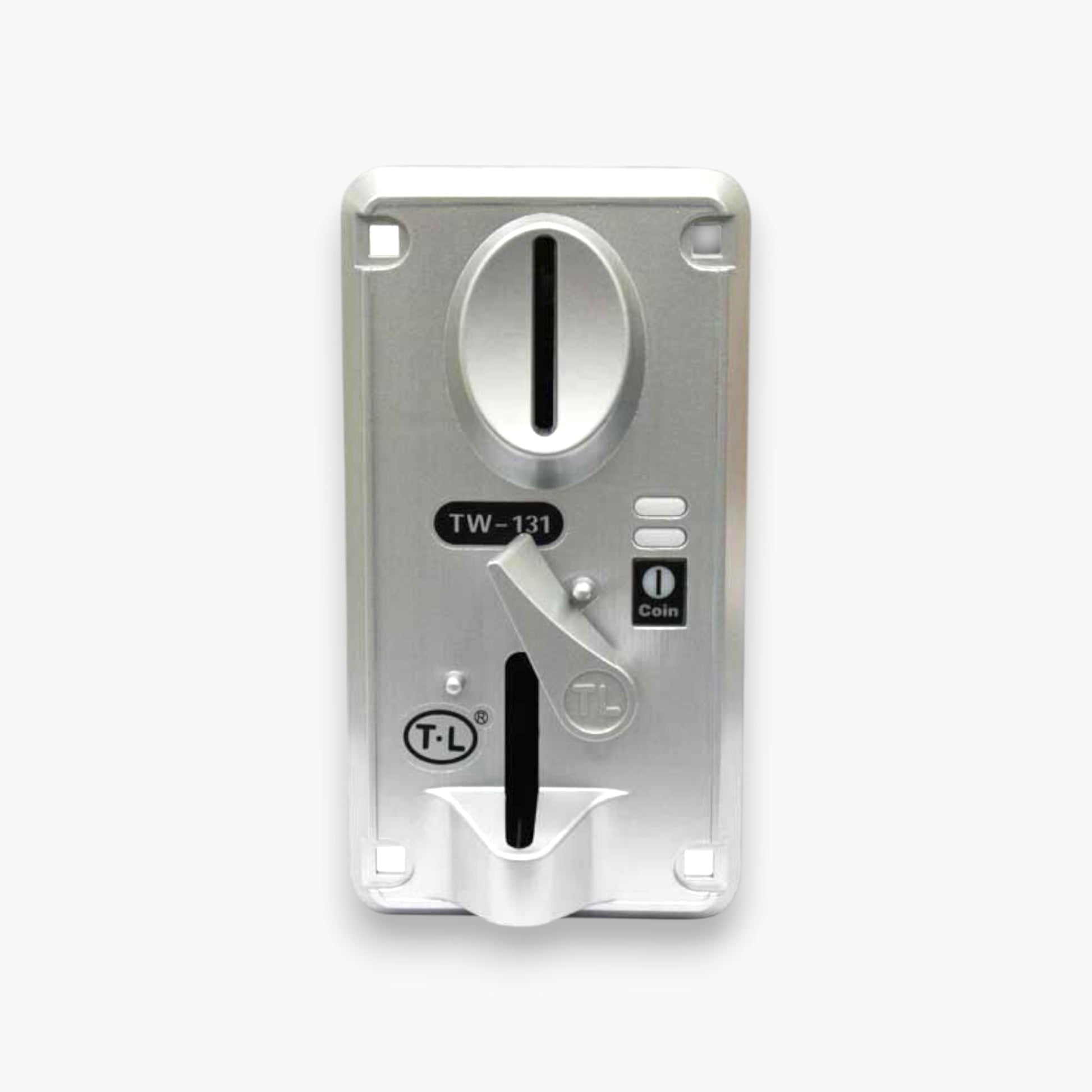

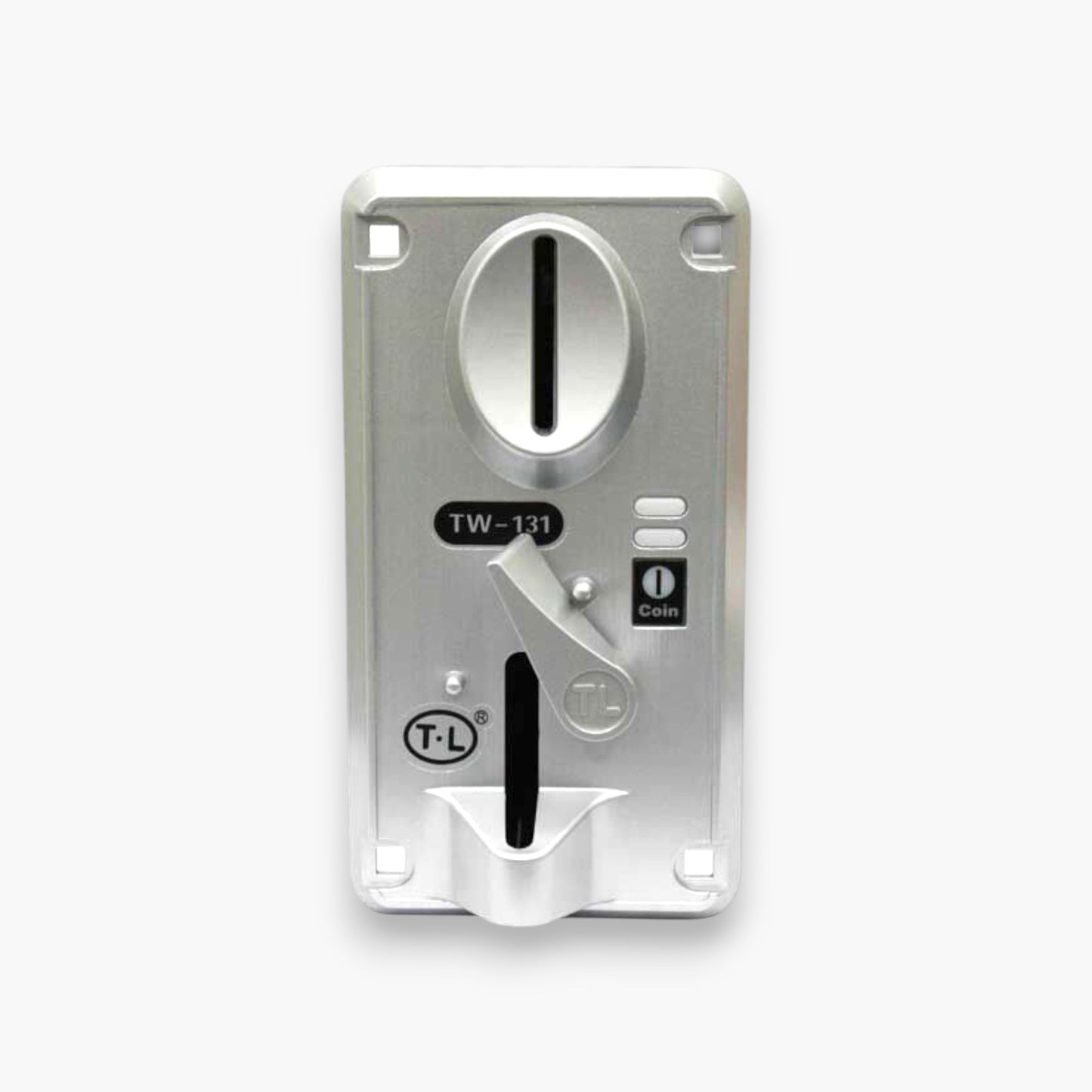

Coin Acceptor TW-131

Coin Acceptor TW-131

Condition: New

The TW-131 Coin Acceptor is a CPU-controlled coin selector designed for arcade games, vending machines, massage chairs, laundromats, and other self-service systems. With built-in coin analysis, anti-jamming features, and LED indicators, it ensures reliable performance and accurate scoring across a wide range of coin types and tokens.

Features:

• Compatible with multiple coin sizes and tokens
• CPU program control for accurate scoring and validation
• Built-in coin analysis for diameter and thickness detection

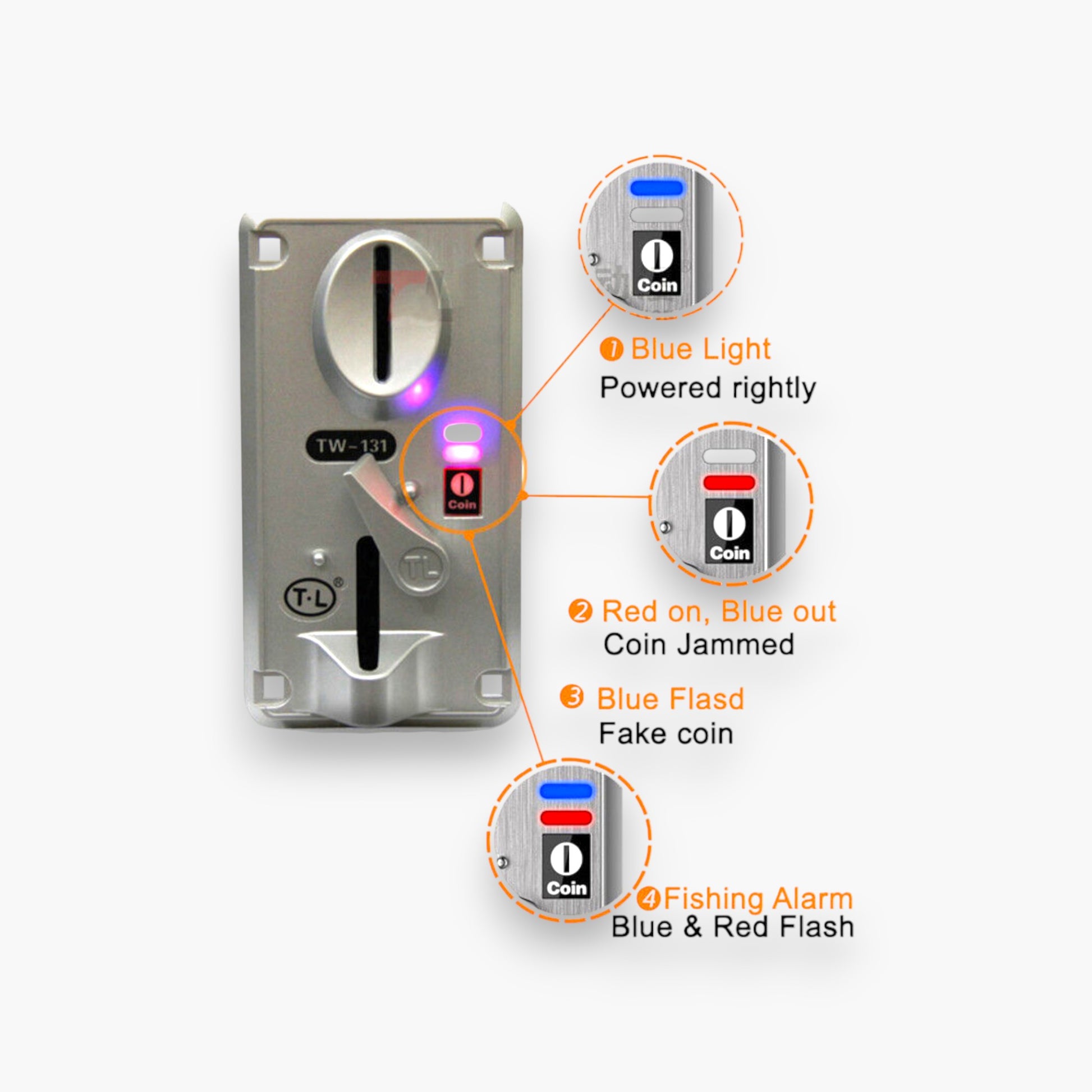

• LED indicator panel for status and fault alerts
• Anti-electromagnetic interference design
• Self-test on power-up with anti-fishing and anti-jamming detection
• Precise/normal switch for smoother coin insertion
• Back-open design prevents coin jams and blockages
• Ideal for arcade machines, vending kiosks, massage chairs, laundromats, and more

Specifications:

• Model: TW-131 Coin Acceptor
• Coin Diameter Range: 22–28 mm
• Coin Thickness Range: 1.7–2.2 mm
• Voltage: DC 12V ±10%
• Current: 65mA ±5%
• Identification Accuracy: 99%
• Operating Temperature: -15°C to +75°C
• Atmospheric Pressure: 86Kpa to 106Kpa
• Signal Output: Pulse
• Pulse Width Options: 20ms / 40ms / 100ms
• Validation Speed: ≤0.6 seconds
