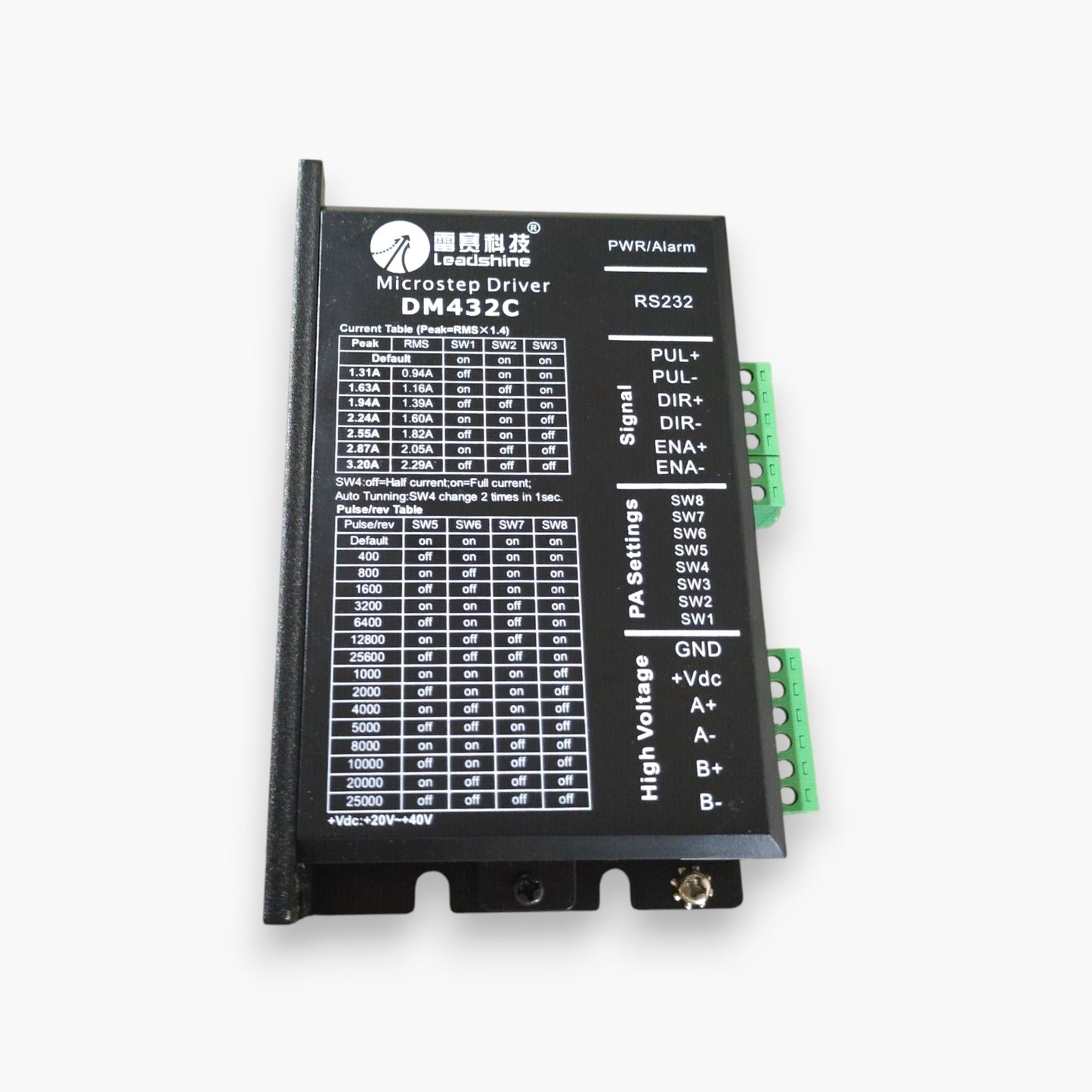

Leadshine DM432C Digital Stepper Motor Drive 40VDC/3.2A

1 Pcs Leadshine DM432C Digital Stepper Motor Driver – 40VDC / 3.2A

Condition: New

The DM432C is a fully digital stepping driver based on a DSP with advanced control algorithm, it is the next generation of digital stepping motor controls. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor auto-identification and parameter auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers in the markets. Its unique features make the DM432C an ideal solution for applications that require low-speed smoothness.

Features:

• Anti-Resonance technology for stable torque and smooth motion
• Motor auto-identification & parameter auto-configuration
• Multi-Stepping for enhanced microstep output from low-res inputs
• Programmable microstep resolution: full-step to 51,200 steps/rev
• Automatic idle-current reduction for energy efficiency
• TTL compatible & optically isolated inputs
• Supports both PUL/DIR and CW/CCW control modes
• Comprehensive protection: over-voltage, over-current, phase error

Specifications:

• Supply Voltage: Up to +40 VDC
• Output Current: Programmable from 0.5A to 3.2A
• Pulse Input Frequency: Up to 200 KHz
• Motor Compatibility: 2-phase and 4-phase stepper motors
• Control Core: DSP-based digital control algorithm
• Model: DM432C
