Replacement Coil for Large Claw Machine – Crane Claw Solenoid with Coiled Cable

Replacement Coil for Large Claw Machine – Crane Claw Solenoid with Coiled Cable

Condition: New

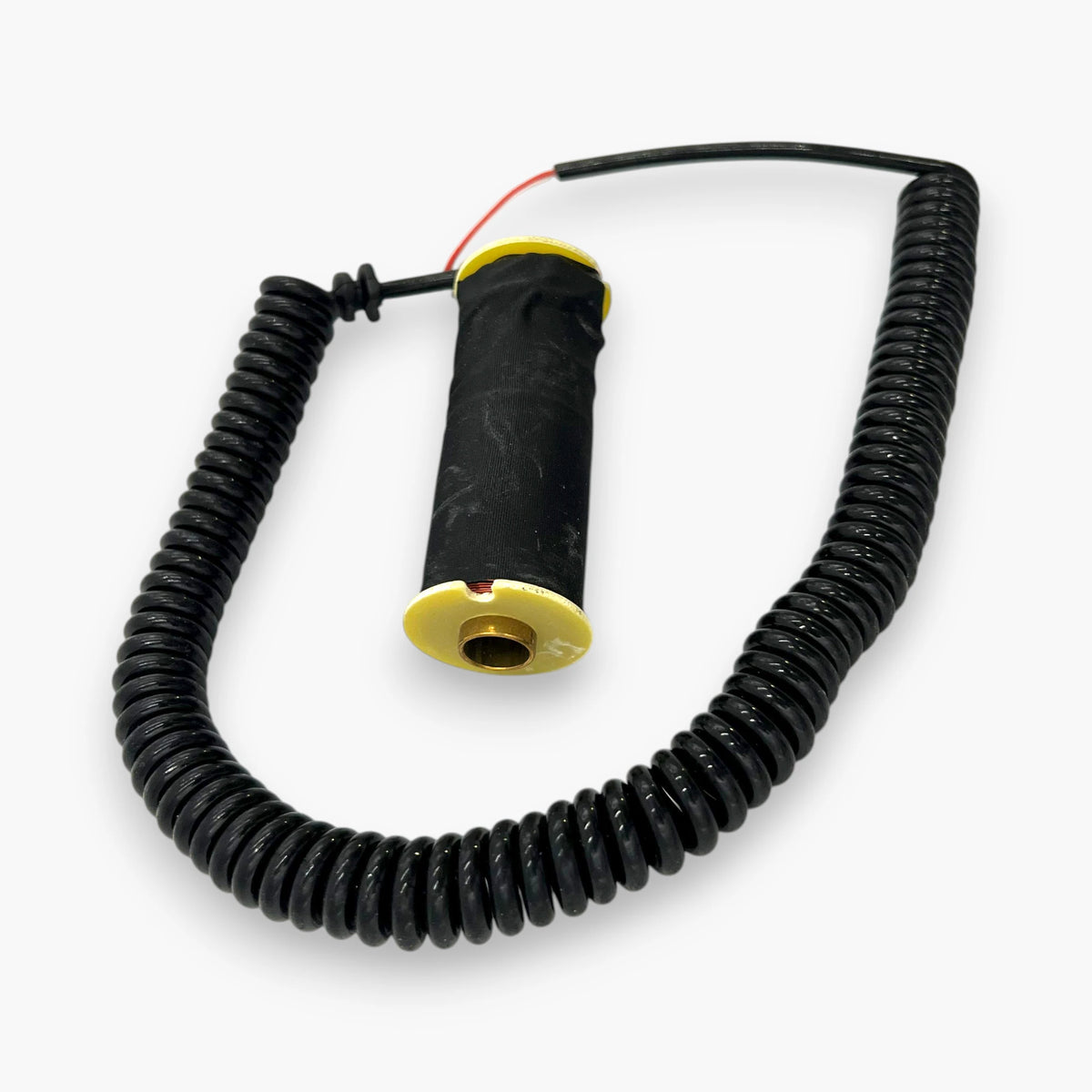

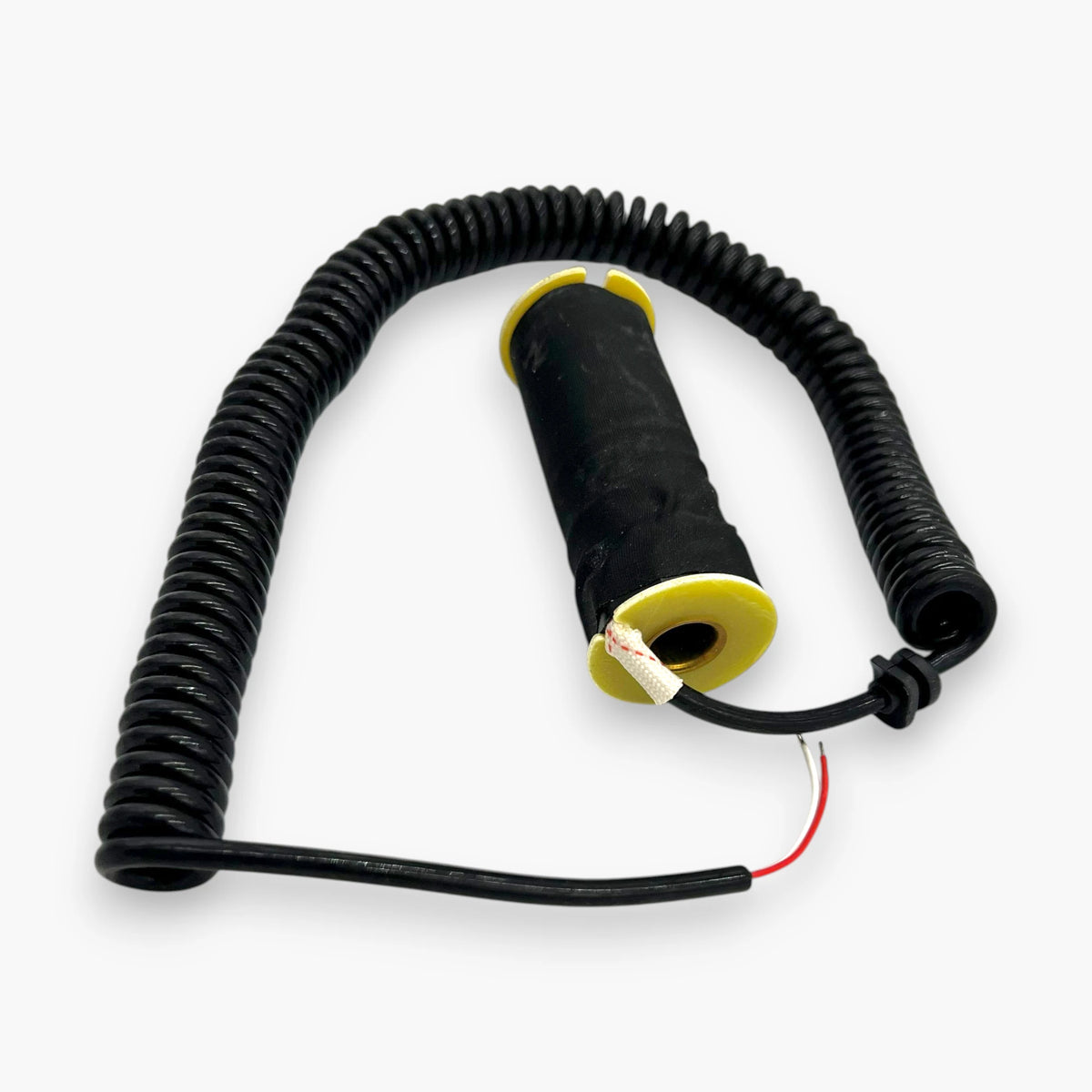

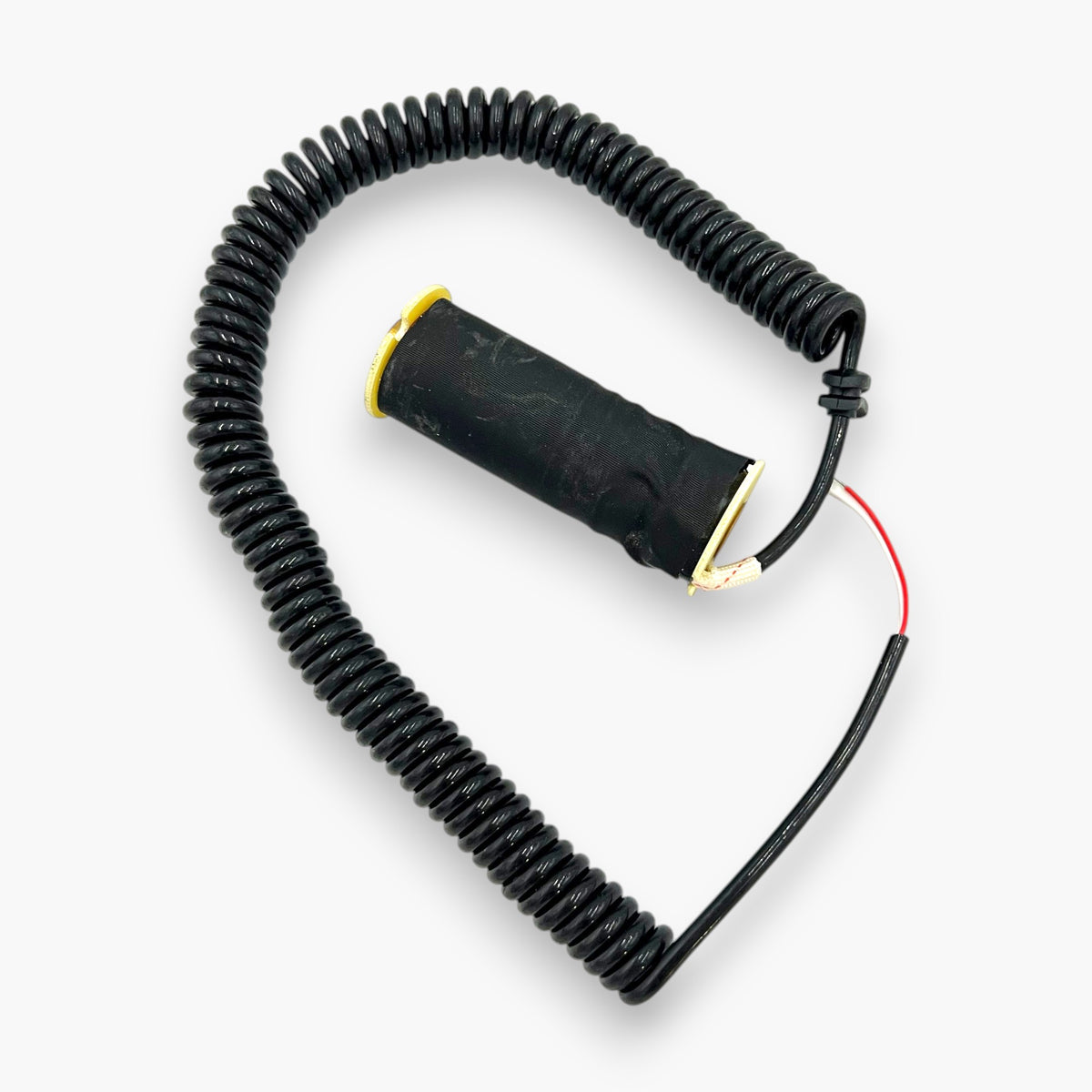

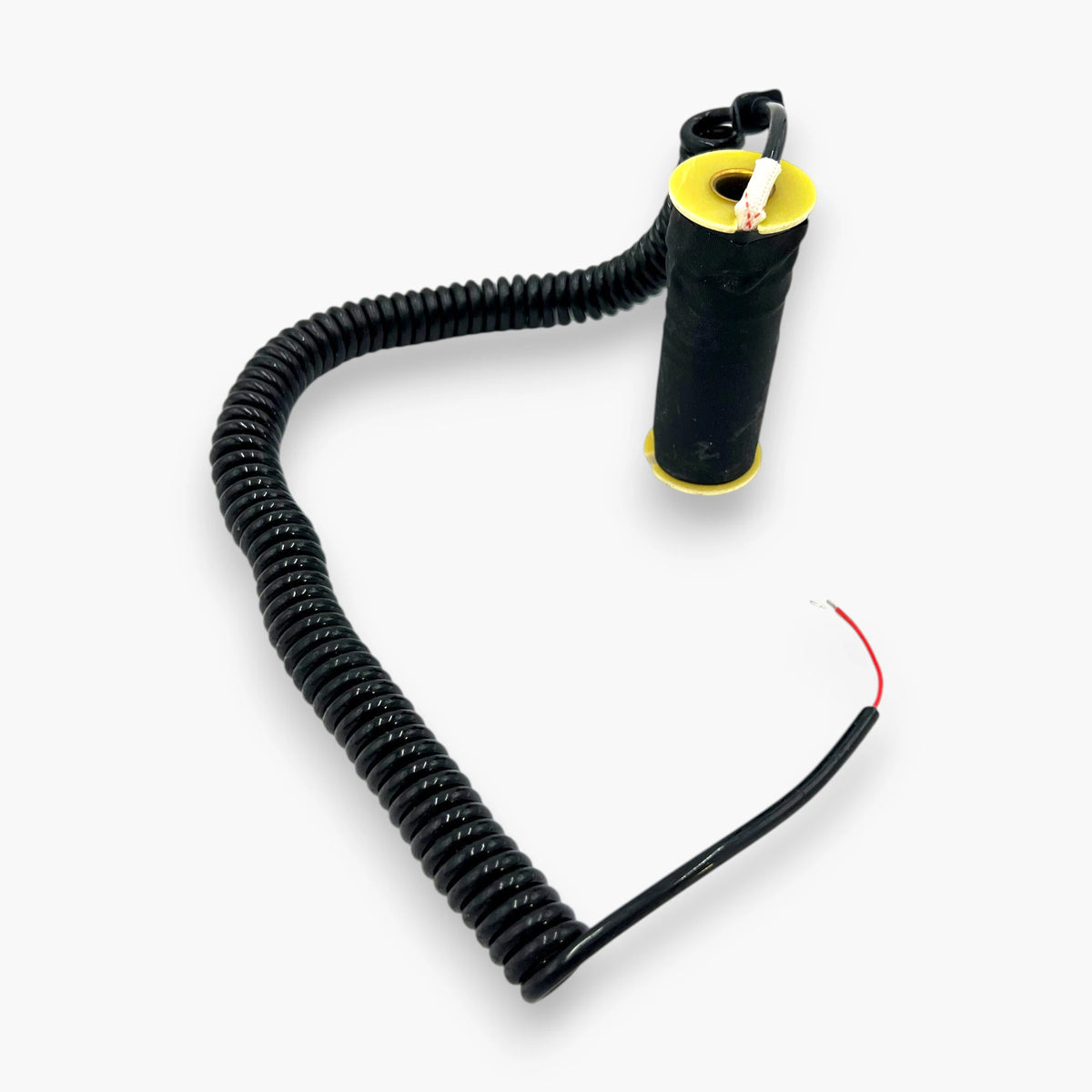

This replacement solenoid coil is for large claw and crane machine claws. When energized, it pulls the plunger to close the claw. A weak or burnt-out coil is one of the most common causes of poor claw grip. The coil has an 11 mm brass-lined bore for smooth plunger travel and yellow insulating end flanges. It comes pre-wired with a coiled 2-wire cable that stretches as the claw drops and retracts neatly as it rises.

Features:

• Direct replacement coil for large claw and crane machine claws.
• 11 mm brass-lined bore for smooth, consistent plunger movement.
• Pre-attached coiled 2-wire cable that flexes with the claw and resists tangling.
• Fiberglass-sleeved lead exit and strain-relief grommet to protect the wiring.
• Bare-wire ends (red and white) for straightforward connection to your existing harness.
• Restores claw strength when replacing a weak, damaged, or burnt-out coil.

Specifications:

• Coil dimensions: 3 x 3 x 8 cm
• Inner diameter: 11 mm
• Voltage: 48V
• Cable: Coiled 2-wire, bare ends
• Weight: 295 g
• Package includes: 1 piece
