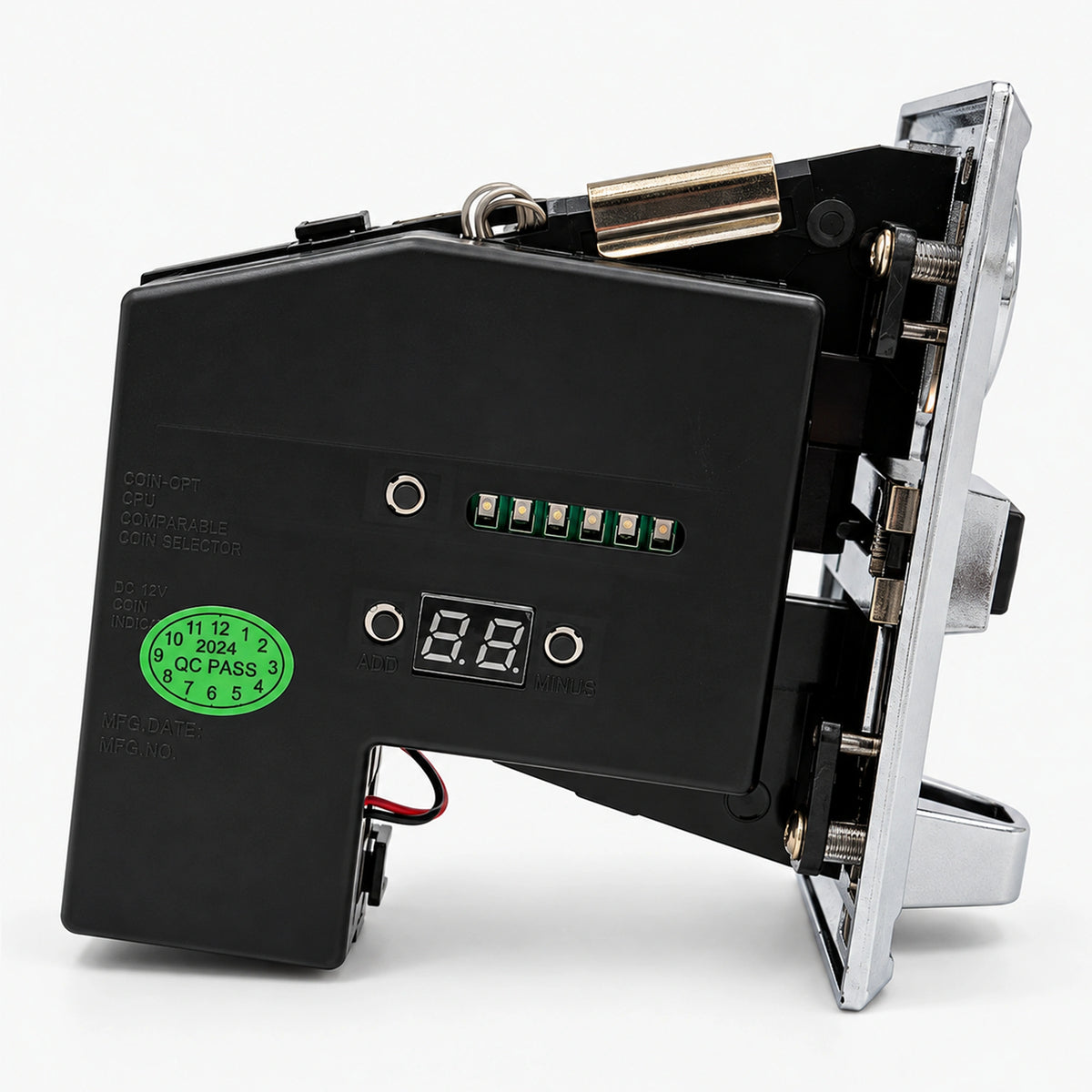

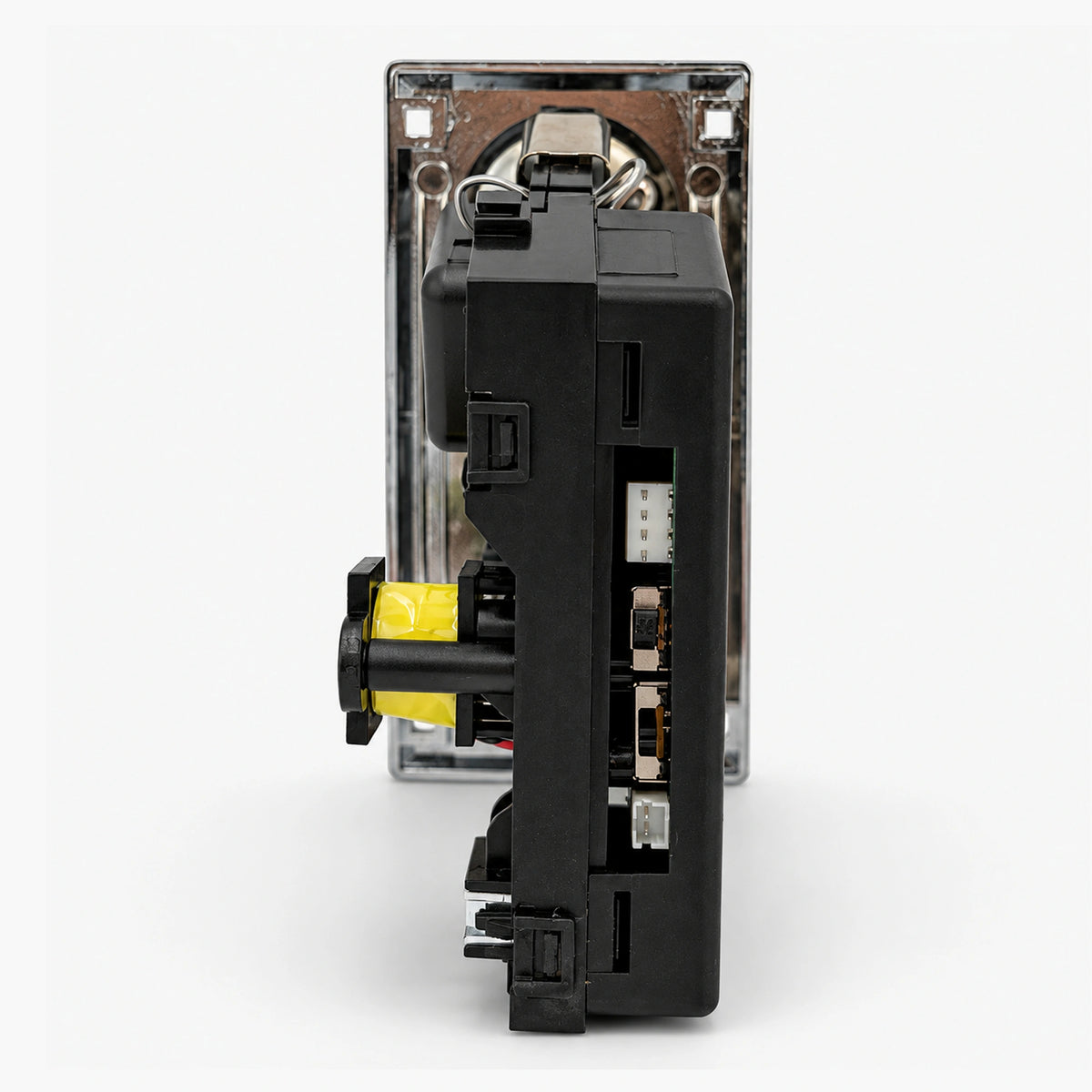

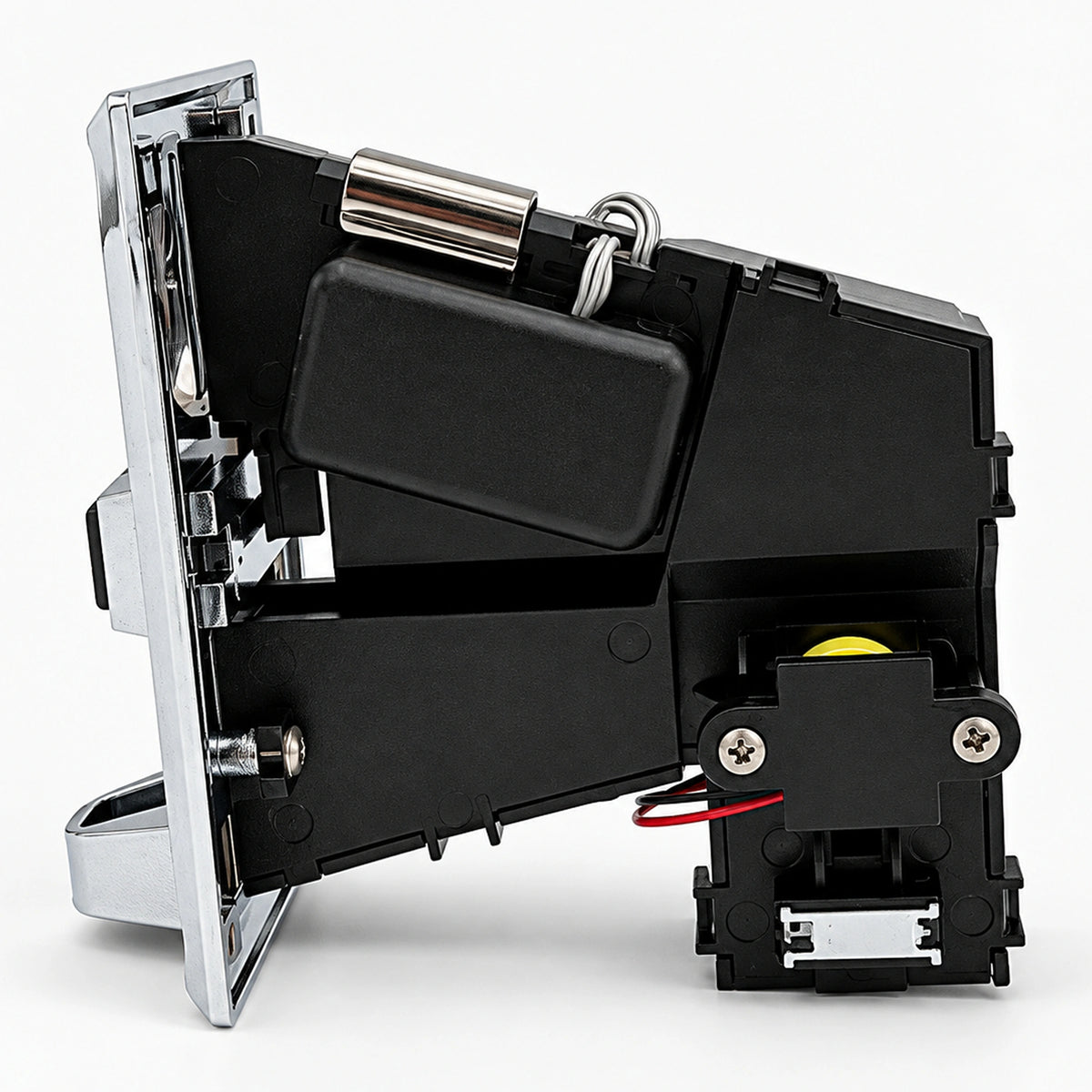

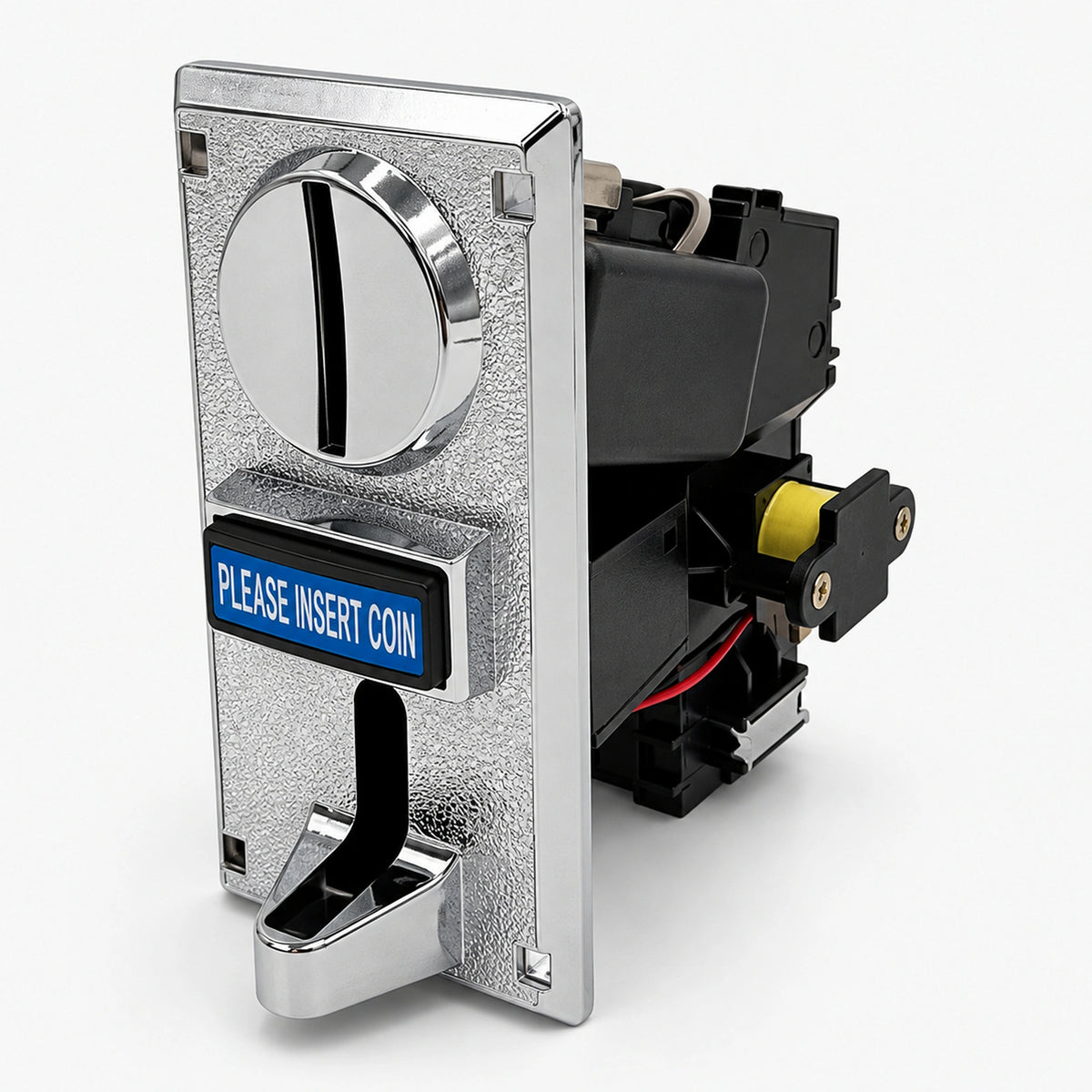

6-Coin Token Acceptor Selector for Vending & Arcade Machines – CPU Controlled, Anti-Phishing, 12V DC

6-Coin Token Acceptor Selector for Vending & Arcade Machines – CPU Controlled, Anti-Phishing, 12V DC

Condition: New

This 6-Coin Token Acceptor Selector is a CPU-controlled coin validation unit designed for arcade cabinets, vending machines, massage chairs, toy rides, laundromats, and other coin-operated systems. Accepting up to 6 different coins or tokens simultaneously, recognizing by material, diameter, and thickness with 95% accuracy, it features anti-phishing, anti-shock, and anti-high frequency interference protection, a cheat alarm system, and a back-open structure that prevents jamming. Running on 12V DC with cumulative signal output and counter connectivity, it's built for reliable, secure operation in high-traffic commercial environments.

Features:

• Accepts up to 6 different coins or tokens simultaneously
• CPU-controlled recognition based on material, diameter, and thickness
• High accuracy rate for true/false coin detection
• Anti-phishing, anti-shock, anti-high frequency interference protection
• Cheat alarm system to prevent manipulation
• Supports cumulative signal output and time control
• Connects to counters for tracking usage

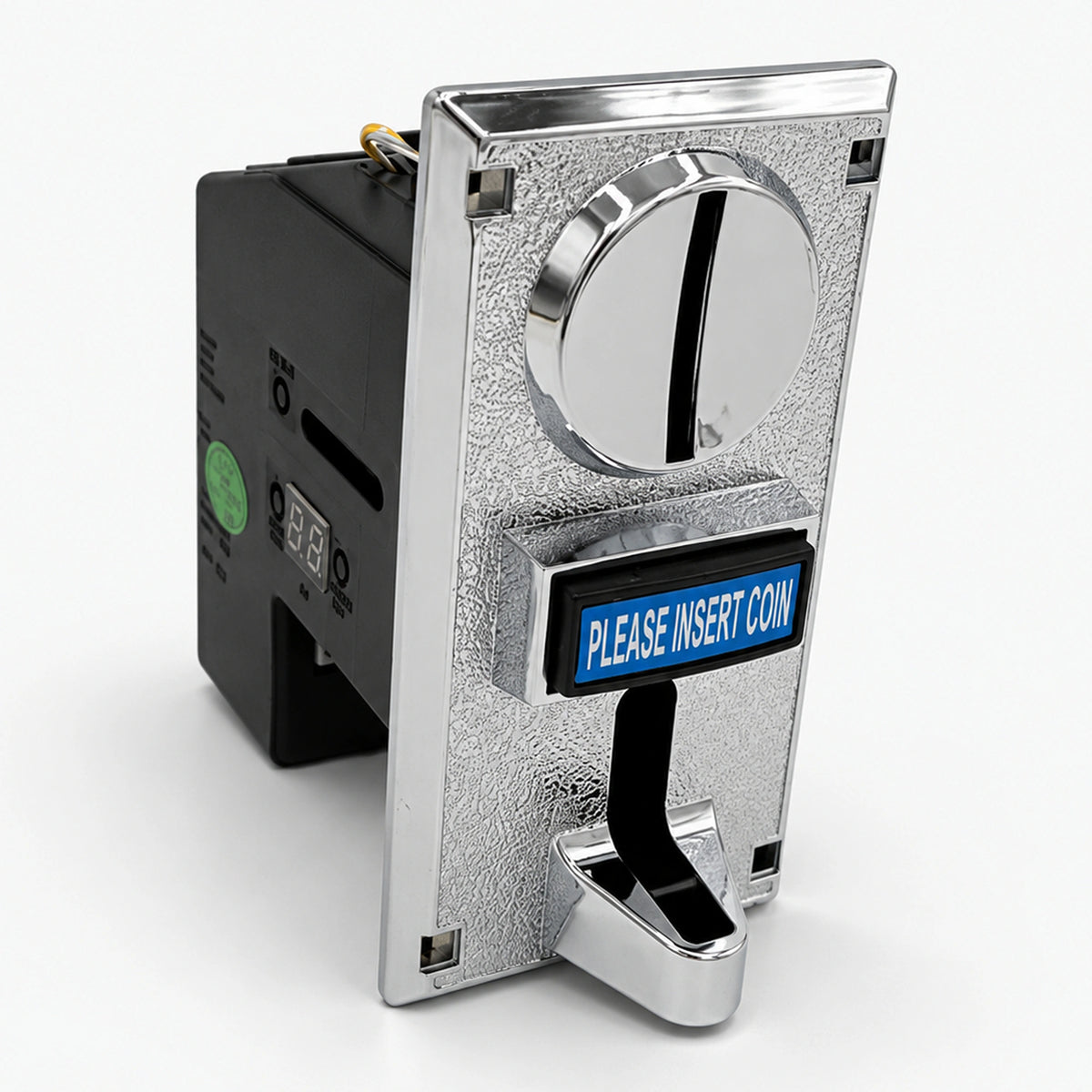

• Smooth Coin Insertion: Precise/normal switch design ensures consistent coin flow with minimal jamming in high-volume commercial use
• Ideal for arcade games, vending machines, massage chairs, toy rides, laundromats, and more

Specifications:

• Material: PC plastic back shell
• Identification Accuracy: 95%
• Coin Diameter Range: 15–29 mm (0.59–1.14 inch)
• Coin Thickness Range: 1.8–3.0 mm
• Operating Voltage: DC 12V ±10%
• Working Current: 50mA
• Max Current (Momentary): 350mA (less than 0.5 sec)
• Humidity: ≤95%
• Storage Temperature: -20°C to +85°C
• Operating Temperature: -10°C to +60°C
• Atmospheric Pressure: 80Kpa to 106Kpa
• Recognition Speed: ≤0.6 seconds
• Product Dimensions (inches): 2.52 x 4.88 x 5.63
• Product Dimensions (cm): 6.4 x 12.4 x 14.3
• Screw Hole Size: 0.5 × 0.5 cm (0.20 × 0.20 inch)
• Hole Pitch: 4.6 × 9.7 cm (1.81 × 3.82 inch)

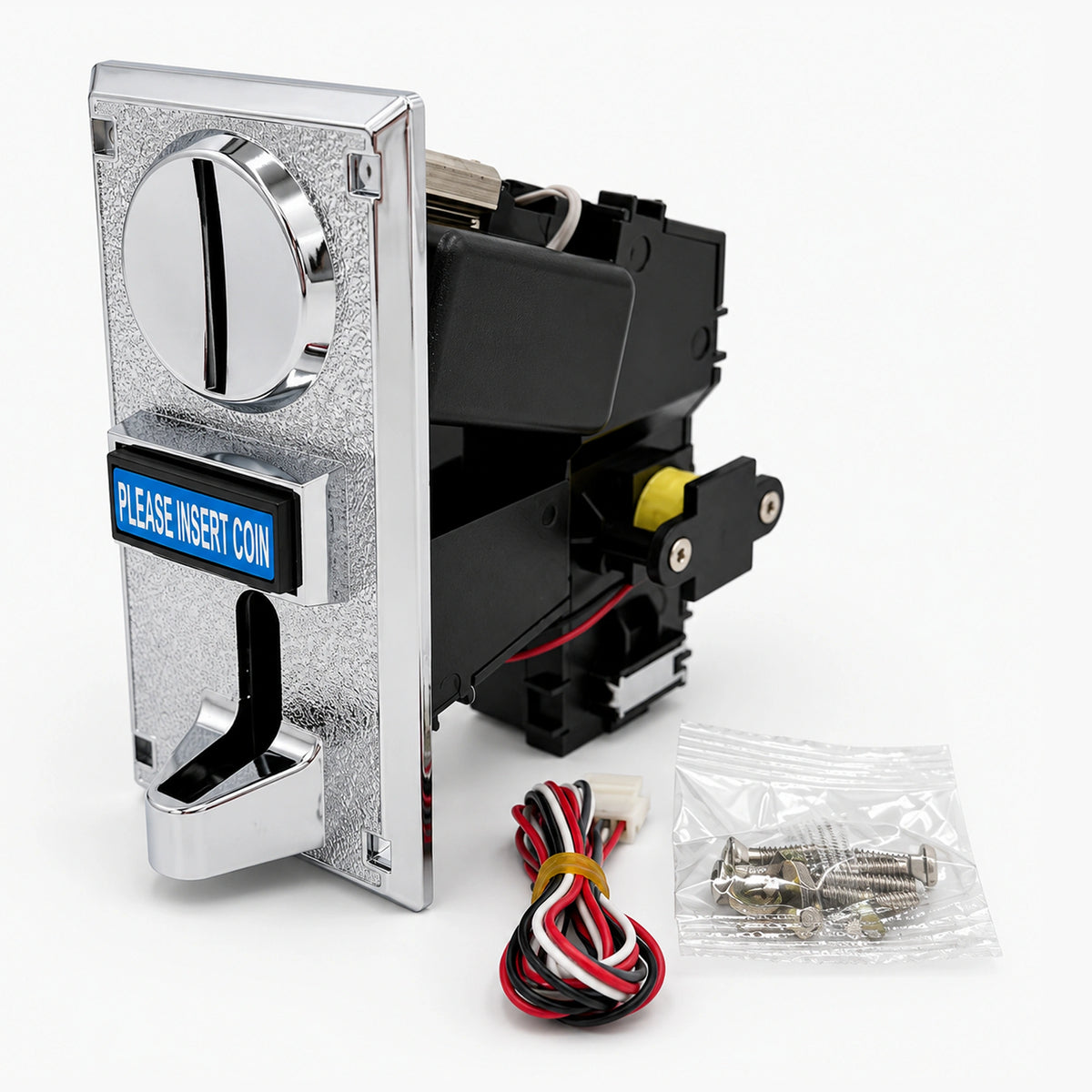

Package Includes:

• 1 × Multi-Coin Acceptor
• 1 × Installation Kit (screws, nut, connector)
